5000 Series
WM-5270

WM-5270

  • WM-5270

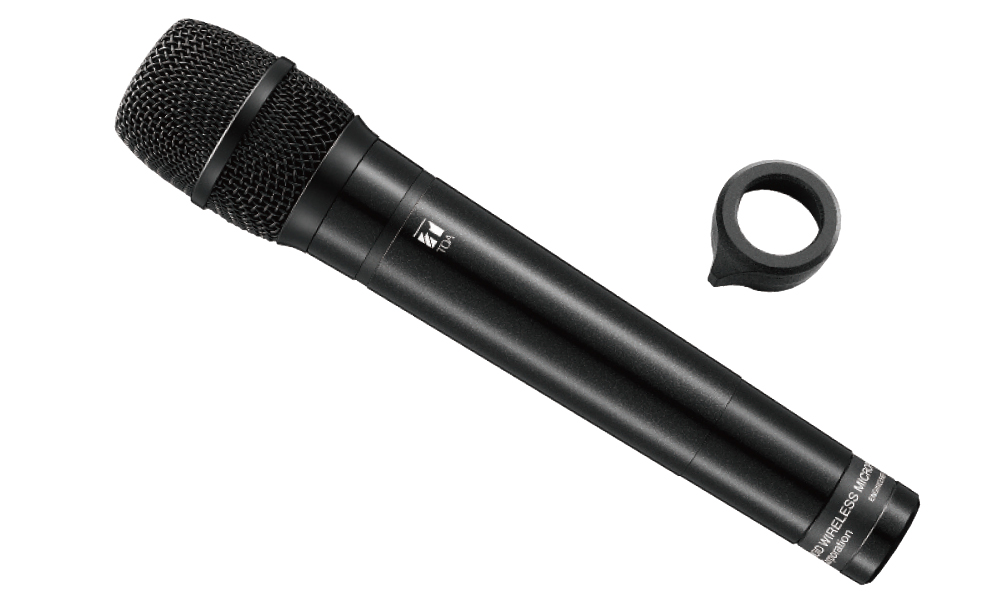

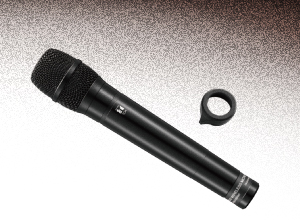

wM-5270 WM-5270 Handheld (Vocal) Microphone
  • Unidirectional dynamic cardioid microphone element designed for vocal use
  • 64 selectable channels
  • Maximum input level: 142 dB SPL (Can be set from 130dB to 142dB by Pad switch)
  • Dynamic range: 95 dB or more
  • Single AA battery operation for more compact and lightweight body
  • Low-battery indicator (Sufficient power/Green, Low battery/Dimming green,
    　Empty/Red)
  • Built-in antenna
WM-5270 Handheld (Vocal) Microphone
RF Carrier Power Less than 50 mW (Factory preset 10 mW ERP)
Maximum Input Level 142 dB SPL
Audio Frequency Response 80Hz – 15kHz
Dynamic Range (AF Circuit) 95dB or more (with WT-5800)
Battery AA alkaline dry cell battery
Battery Life Approx. 10h (when the alkaline battery is used)
Indicator Power/Battery lamps
Dimensions ø48 × 244 mm (ø1.89" × 9.61")
Weight 340g (0.75 lb) (with battery)

Available System

WT-5800WT-5805WT-5810
WT-4820WT-5100

Available System

WM-5270WM-5265WM-5225
WM-5325 WM-4300
