5000 Series
WM-5225

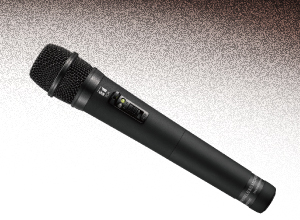

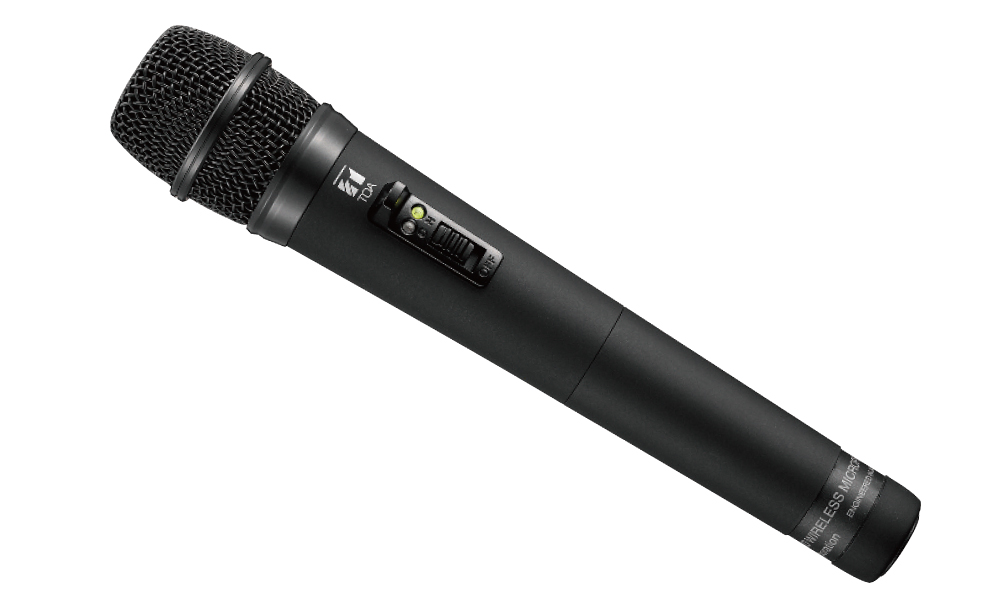

WM-5225 Handheld (Speech) Microphone

  • WM-5225

S5.5 BeltpackS5.5 Beltpack WM-5225 Handheld (Speech) Microphone
  • Unidirectional electret condenser cardioid microphone element
  • 64 selectable channels
  • Maximum input level: 126 dB SPL
  • Dynamic range: 95 dB or more
  • ON/OFF switch prevents the microphone from rolling
  • WB-2000 rechargeable battery or Single AA battery operation
    　for compact and lightweight body
  • Low-battery indicator (Sufficient power/Green, Low battery/
    　Dimming green, Empty/Red)
  • Built-in antenna
WM-5225 Handheld (Speech) Microphone
RF Carrier Power Less than 50 mW (Factory preset 10 mW ERP)
Maximum Input Level 126 dB SPL
Audio Frequency Response 100Hz – 15kHz
Dynamic Range (AF Circuit) 95dB or more (with WT-5800)
Battery WB-2000 rechargeable battery (option) or AA alkaline dry cell battery
Battery Life Approx. 13h (when the WB-2000 rechargeable battery is Used)
Approx. 10h (when the alkaline battery is used))
Dimensions ø43.6 × 231.5 mm (ø1.72" × 9.11")
Weight 180 g (0.4 lb) (with battery)

Available System

WT-5800WT-5805WT-5810
WT-4820WT-5100

Available System

WM-5270WM-5265WM-5225
WM-5325 WM-4300
