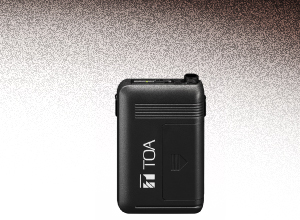

WM-5325 WM-5325 Wireless Transmitter
The WM-5325 wireless transmitter has been manufactured for use with a UHF system. It is for use in speech reinforcement applications. Thanks to the PLL-synthesizer system, 64 different operating frequencies are made available.
A high output power ensures stable radio signal transmission.

  • 64 selectable channels
  • Maximum input level: -14 dB to -29 dB*
  • WB-2000-2 rechargeable battery or Single AA battery operation
    　 for compact and lightweight body
  • Low-battery indicator (Sufficient power/Green, Low battery/Dimming green,
    　 Empty/Red)
  • Built-in antenna
WM-5325 Wireless Transmitter
RF Carrier Power Less than 50 mW (Factory preset 10 mW ERP)
Oscillator PLL synthesizer
Maximum Input Level -14dB to -29dB*1 (Audio level control: Min. to Max.)
Audio Frequency Response 100Hz – 15kHz
Battery WB-2000 rechargeable battery (option) or LR6/AA alkaline dry cell battery
Battery Life Approx. 13h (when the WB-2000 rechargeable battery is Used)
Approx. 10h (when the alkaline battery is used))
Connector ø3.5mm (ø0.14") mini plug
Dimensions 62 (W) × 102.5 (H) × 23 (D) mm (2.44" × 4.04" × 0.91")
Weight 90 g (0.2 lb) (with battery)

Available System

WT-5800WT-5805WT-5810
WT-4820WT-5100

Available System

WM-5270WM-5265WM-5225
WM-5325 WM-4300
