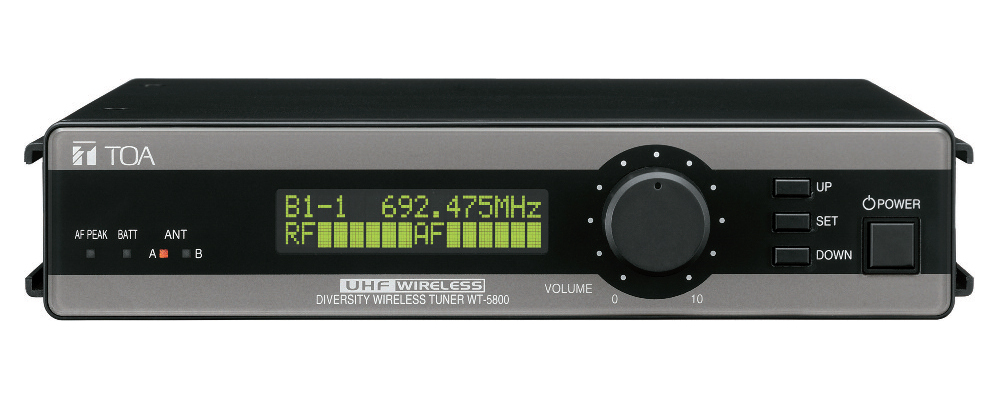

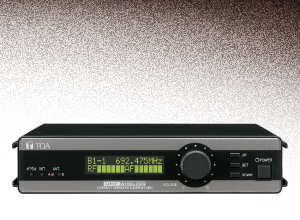

WT-5800 Wireless Tuner
The 5000 series tuners are designed to deliver outstanding performance , stability and reliability. A wide choice of channels can be obtained by the using PLL-synthesized oscillators enabling the selection of channels freely without interference.
Additionally, the 5000 series provide significantly less potential for noise caused by antenna changeover , by employing true diversity and space diversity methods. Two-line LCD display enables faster meter reading. Remaining battery power indication. PLL synthesis is incorporated to generate highly accurate frequency output signals that help achieve better overall system performance. For further performance enhancement, a TOA diversity system eliminates dead spots and provides more stable signal reception. Noise reduction is improved with a squelch function (carrier, noise, tone), and a compounder function minimising ambient noise. For easier operation, a Channel Check function simplifies channel setting operations on microphones using multiple channels simultaneously.
- Phase Locked Loop (PLL) synthesis operation
- 64 selectable channels
- True diversity technology
- Double super-heterodyne receiving system
- Two-line LCD display
- Auto mixing input function
- Squelch function (carrier, noise, tone)
- Usable frequencies scanning and vacant channel search function
- Compact half-rack size body
- 6 points audio level meter for microphone sensitivity adjustment
- Compander circuitry for minimizing ambient noise
- Antenna distribution output
- Whip antenna × 2
- Low-battery indicator (wireless microphone's battery voltage becomes low)
|
WT-5800 Wireless Tuner
| Power Consumption |
250mA (12V DC) |
| Receiving Frequency |
576–865 MHz*, UHF |
| Channel Selectable |
64 Selectable frequencies
|
| Diversity System |
Space divercity (true diversity) |
| Mixing Output |
MIC: –60dB*1, 600Ω, balanced, XLR-3-31 type connector
LINE: –20dB*1, 600Ω, unbalanced, phone jack |
| Mixing Input |
–20dB*1, 10 kΩ, unbalanced, phone jack |
| Antenna Input |
75Ω, BNC (phantom powering for antenna)
9V DC, 30mA (max.) |
| Antenna Output |
75Ω, BNC (Gain 0dB) |
| Receiving Sensitivity |
90dB or more, S/N ratio (20dBμV input, 40kHz deviation) |
| Squelch Sensitivity |
18 – 40dBμV variable |
| Squelch System |
Using together of noise SQ, carrier SQ and tone SQ |
| Indicator |
Audio (6 step), RF (6 step), ANT A/B, Audio (peak),
battery alarm |
| Channel Check |
Usable frequencies scanning |
| S/N Ratio |
110dB or more (A-weight, unbalanced output) |
| Harmonic Distortion |
1% or less (typical) |
| Frequency Response |
100 – 15kHz, ±3 dB |
| Dimensions |
210(W) × 44(H) × 205.1(D) mm (8.27" × 1.73" × 8.07") |
| Weight |
700 g (1.54 lb) |
* The number of channels may differ from country to country.
*1 0dB = 1 V |
