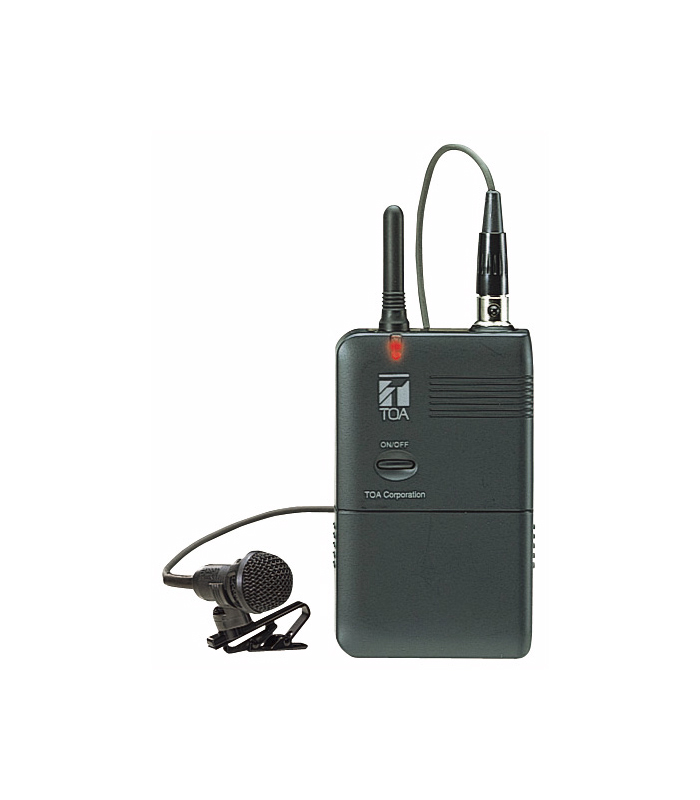

WM-4300 Wireless (Lavalier) Microphone
The WM-4300 lavalier wireless microphone has been manufactured for use with a UHF system. It incorporates a cardioid pick-up pattern and has been designed for use in vocal and speech reinforcement applications.
The built-in compressor-expander circuit minimizes the influence from ambient noise.

  • Electret condenser cardioid microphone element for speech use
  • 64 selectable channels
  • Input sensitivity control included
  • Maximum input level: 120 dB SPL
  • Built-in circuitry minimizes ambient noise effects.
  • Belt clip rotatable 360 degrees
  • Highly reliable TA-4 (XLR-type) mini-cannon microphone plug
  • LED-low battery indicator (Sufficient power/Orange, Lowattery/Flashing orange)
WM-4300 Wireless (Lavalier) Microphone
RF Carrier Power Less than 50 mW (Factory preset 10 mW ERP)
Maximum Input Level 120 dB SPL
Battery 6LR61 (9 V × 1)
Battery Life 10 hours (alkaline)
Dimensions 62 (W) × 142 (H) × 32 (D) mm (2.44" × 5.59" × 1.26")
Weight 135 g (0.30 lb) (with battery)
