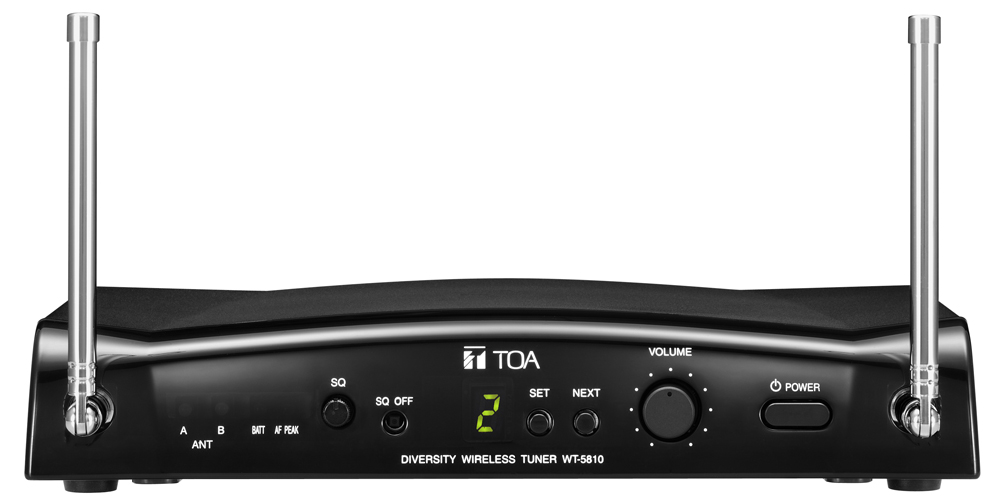

WT-5810WT-5810 WT-5810 Wireless Tuner
The WT-5810 Wireless Tuner is designed for use on the UHF band, and suitable for vocal or speech reinforcement applications.
It features a compounder circuit that minimizes the influence of ambient noise. 16 different operating frequencies ranging from 576 to 865 MHz. Optimized PLL-synthesizer minimizes the oscillation frequency drift resulting from the ambient temperature change.
Compact size and high reliability.

  • Phase Locked Loop (PLL) synthesis operation
  • 16 selectable channel frequencies
  • TOA space diversity technology
  • Double super-heterodyne receiving system
  • Auto mixing input function
  • Squelch function (carrier, noise, tone)
  • Usable frequencies scanning and vacant channel search function
  • Compact portable design
  • Compander circuitry for minimizing ambient noise
  • Rod antenna × 2
  • Balanced output (XLR connector) and phone jack output
  • Low-battery indicator (wireless microphone's battery voltage becomes low)
WT-5810 Wireless Tuner
Power Consumption 130mA (12V DC)
Receiving Frequency 576–865 MHz*, UHF
Channel Selectable 16 CH
Diversity System Space divercity
Mixing Output MIC: –60dB*2, 600Ω, balanced, XLR-3-31 type connector
LINE: –20dB*2, 600Ω, unbalanced, phone jack
Mixing Input –20dB*2, 10 kΩ, unbalanced, phone jack
Antenna Rod antenna
Receiving Sensitivity Over 90dB , S/N ratio (20dBμV input, 40kHz deviation)
Squelch Sensitivity 18 – 40dBμV variable
Squelch System Using together of noise SQ, carrier SQ and tone SQ
Indicator ANT A/B, Audio (peak),battery alarm
Channel Check Usable frequencies scanning
S/N Ratio Over 104dB (A-weight, unbalanced output)
Harmonic Distortion Under 1% (typical)
Frequency Response 100 – 15,000kHz, ±3 dB
Dimensions 206(W) × 40.6(H) × 152.7(D) mm (8.11" × 1.60" × 6.01")
Weight 590 g (1.30 lb)
* The number of channels may differ from country to country.
*2 0dB = 1 V
