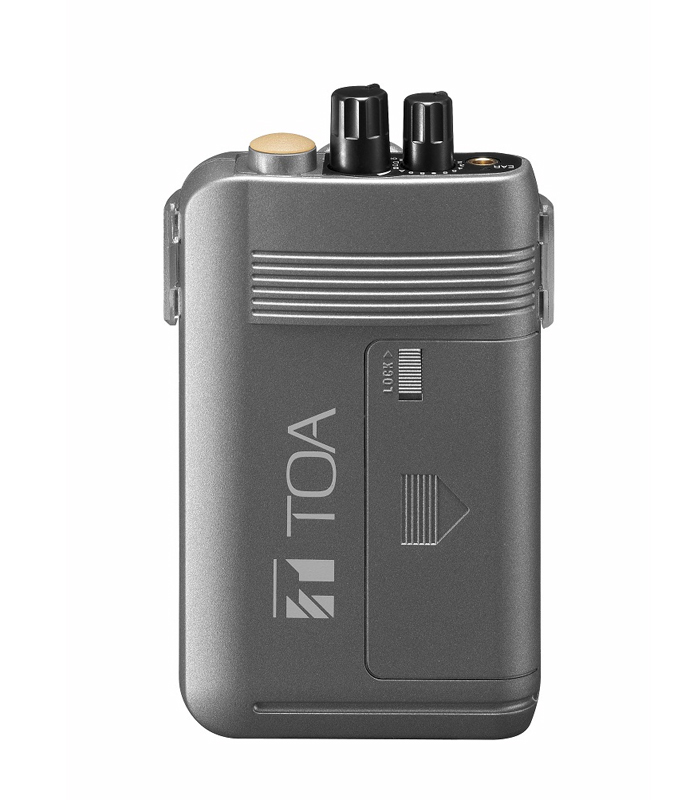

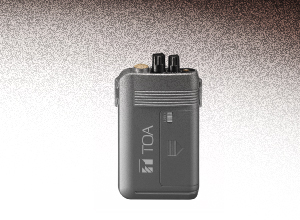

WT-5100 WT-5100 Wireless Receiver
The WT-5100 is a Portable Receiver designed to receive UHF band radio signals. An optional earphone is required.

  • 6 selectable channels
  • Receiving System: Double super-heterodyne
  • Receiving Sensitivity: Better than 60 dB
  • WB-2000-2 rechargeable battery or Single AA battery operation
     for compact and lightweight body
  • Operation/Battery indicator
     (Sufficient power/Green, Low battery/ Dimming green, Empty/Red)
  • Built-in antenna
WT-5100 Wireless Receiver
Receiving Frequencies UHF band (16 ch)
Receiving Sensitivity Better than 60 dB Signal to Noise ratio(20 dBμV input, ±40 kHz deviation)
Frequency Response 200 Hz – 5 kHz (Portable transmitter to Portable receiver)
Output Level 4 mW (16Ω load, 10% distortion)
Battery WB-2000-2 rechargeable battery (option) or LR6/AA alkaline dry cell battery
Battery Life 16 h (when the WB-2000-2 rechargeable battery is used)
15 h (when the alkaline battery is used)
Dimensions 62 (W) × 163.6 (H) × 32.5 (D)mm (2.44" × 6.44" × 1.28")
Weight 125 g (0.28 lb) (battery included)
