S5.5 Series
Active System
Active System

Active System

  • S5.5 Receiver
  • S5.5 Beltpack
  • MIC-X33

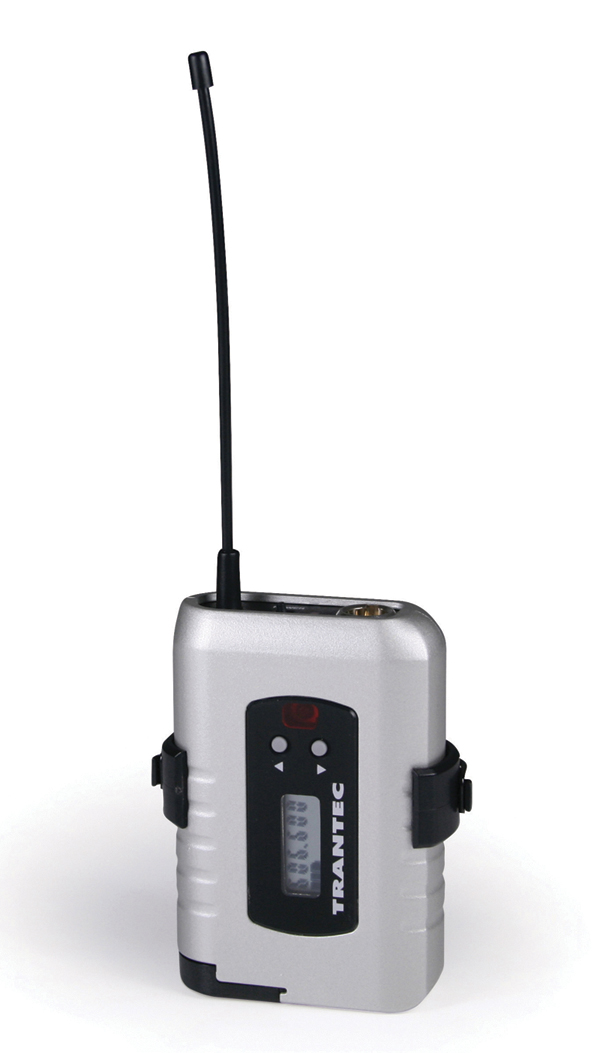

S5.5 Beltpack S5.5 Beltpack Transmitter
Fully synthesised UHF beltpack with features including: integral LCD, IR data link, battery status indicator, digital gain control.
  • Credit card size beltpack
  • Simple programming of transmitter with built-in Infra-red data link
  • Frequency & Power lock facility
  • Single AA operation of transmitters with battery life of over 10 hours
  • Detachable antenna
  • Clear and intuitive LCD display
  • Professional metal enclosure
S5.5 BTX
RF Carrier Power Less than 50mW(Factory preset 10mW ERP)
Modulation System PLL synthesizer
Maximum Input Level 120 dB SPL (microphone sensitivity: Gain "0")
Audio Input Connector TA-4 (Mini-XLR 4 pins)
Battery LR6 (Single AA)
Battery Life 10 hours (Alkaline)
Indicator LCD display, Power lamp
Function Infra-red Link Port, Battery life indicator (4 steps), Microphone sensitivity adjustment (Gain 0-9; 20dB)
Dimensions 55 (W) x 80 (H) x 22 (D) mm (2.17" x 3.15" x 0.87")
Weight 140g (0.31lb) (with battery)
