S5.5 Series

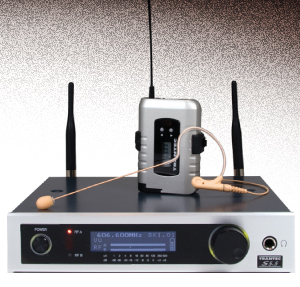

Earworn System
Earworn System

Earworn System

  • S5.5 Receiver
  • S5.5 Beltpack
  • MIC-EM77

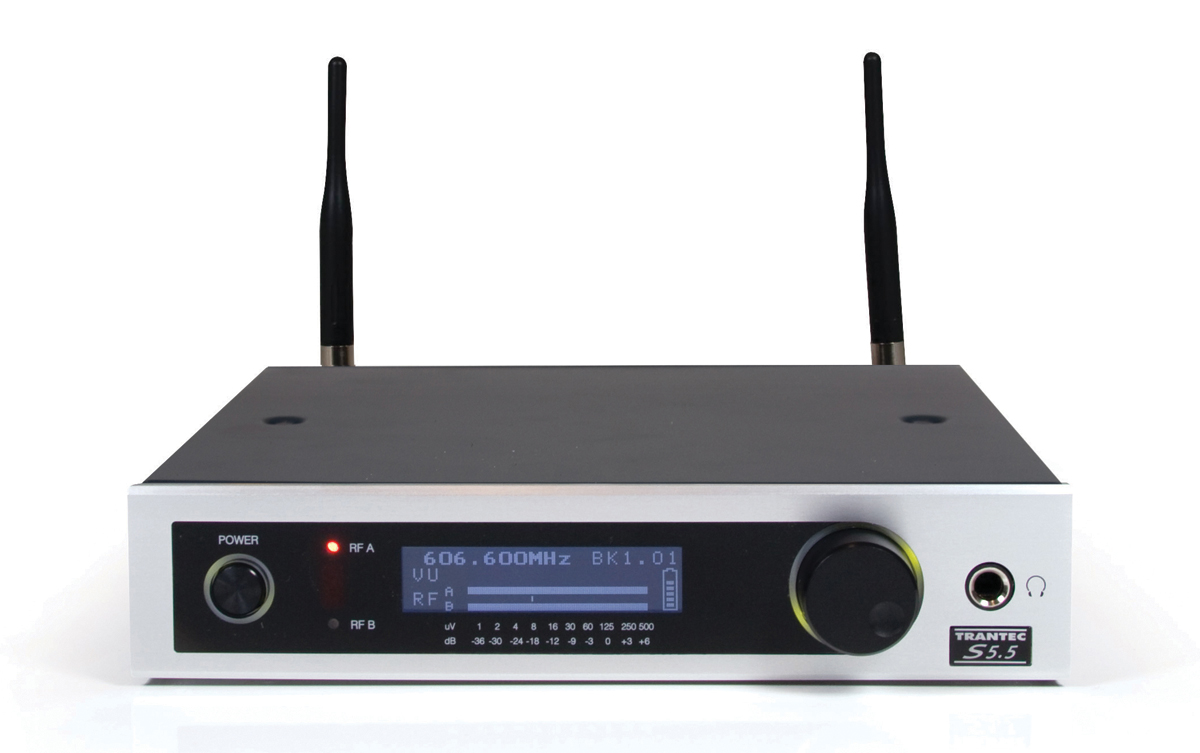

S5.5 Receiver
S5.5 Receiver
S5.5 Receiver
Fully synthesised UHF dual conversion receiver with features including graphic LCD, display jog wheel, IR data link, and headphone monitor.
  • True diversity operation
  • Up to 1400 selectable frequencies
  • Interactive USB based computer control and monitoring for all aspects of performance
  • Frequency scan function
  • Integral triple tone grip/noise and signal strength mute circuit for protection against external interference
  • Simple programming of transmitter with built-in Infra-red data link
  • Clear and intuitive LCD displays
  • EQ and phase reversal
  • Professional metal enclosure.

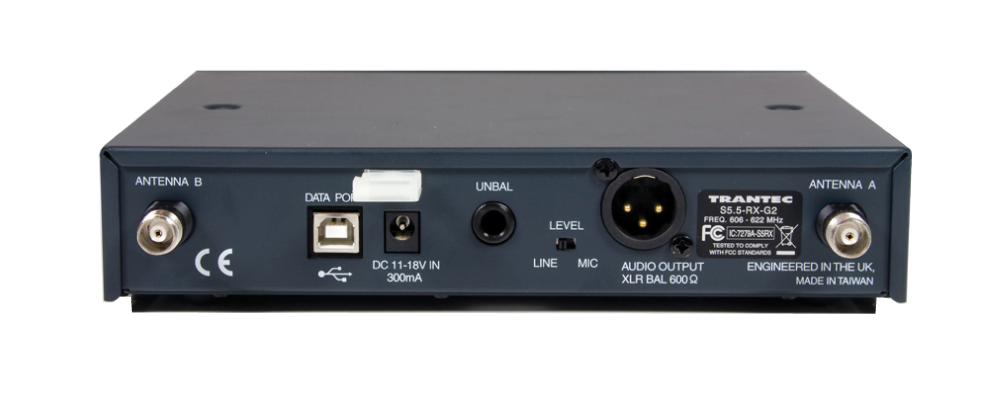

S5.5 RX
Power Consumption 300 mA (13 V DC)
Diversity System Space diversity (true diversity)
Audio Output Line: -22 dB*/ Mic: -62 dB* Line/Mic selectable, 600 Ω, balanced, XLR-3-32 type connector Headphone: max. 100 mW 16 Ω, unbalanced, phone jack -28 dB*, 600 Ω, unbalanced, phone jack
Antenna Phantom Power 9 V DC, 30 mA (max) (Available to turn off phantom power)
Receiving Sensitivity 0 dB μV or less (12 dB SINAD)
Squelch Sensitivity 6 - 36 dB μV variable
Squelch System Using together of noise SQ, carrier SQ and tone SQ
Indicator LCD, Power lamp, Mute lamp, ANT A/B lamp
S/N Ratio 110 dB or more (A-weight)
Harmonic Distortion 1% or less (typical)
Frequency Response 50 Hz - 20 kHz, ±3 dB
Function Audio Low-cut, High-boost and phase reverse, Battery indicator (7 steps), Headphone output, Infra-Red link port, Channel scan, Monitoring software with USB connectivity
Dimensions 210 (W) x 46 (H) x 210 (D) mm (8.27" x 1.81" x 8.27") (excluding antenna)
Weight 1.3kg (2.87lb)
Frequency Bands 606-638, 636-666, 668-698, 692-722, 722-752, 740-752, 794-830, 830-865 MHz
