S4.16 Series

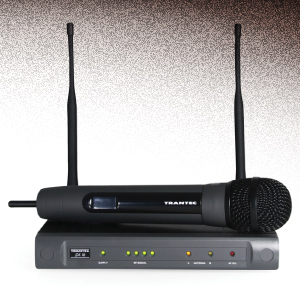

Handheld System
Handheld System

Handheld System

  • S4.16 Receiver
  • S4.16 Handheld

S4.16 ReceiverS5.5 Receiver
S4.16 Receiver
  • 16 selectable frequencies
  • Up to 12 simultaneous channels
  • Fully synthesised PLL quartz tuning technology
  • Receiver LED's show AF Peak level, RF Level, and Diversity Channel A or B
  • Diversity operation with detachable antennae
  • Professional metal enclosure
  • 19" rack mount option for one or two receivers.
S4.16-RX
Power Consumption 100 mA (12 V DC)
Audio Output Balanced output: +16 dB(※)(max), 600 Ω, balanced, XLR-3-31 type connector
Unbalanced output: +10 dB(※)(max), 600 Ω, unbalanced, phone jack
※0dB=0.775V
Receiving Sensitivity Over 90 dB, S/N ratio (20 dB μV input, 40 kHz deviation)
Squelch Sensitivity 18 - 40 dB μV variable
Indicator ANT A/B, Audio (peak), RF level, Power
S/N Ratio Over 95 dB (A-weight, unbalanced output)
Harmonic Distortion Under 1% (typical)
Frequency Response 100 - 15,000 Hz, ±3 dB
Operation Temperature -10°C to +45°C
Dimensions 214 (W) x 35 (H) x 100.5 (D) mm(8.4"x 1.39"x 6.06" ) (excluding antenna)
Weight 580g(1.08lb)
Frequency Bands 606-614, 719-744, 854-865 MHz
