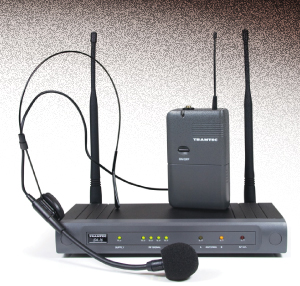

S4.16-RX
Power Consumption |
100 mA (12 V DC) |
Audio Output |
Balanced output: +16 dB(※)(max), 600 Ω, balanced, XLR-3-31 type connector
Unbalanced output: +10 dB(※)(max), 600 Ω, unbalanced, phone jack
※0dB=0.775V |
Receiving Sensitivity |
Over 90 dB, S/N ratio (20 dB μV input, 40 kHz deviation) |
Squelch Sensitivity |
18 - 40 dB μV variable |
Indicator |
ANT A/B, Audio (peak), RF level, Power |
S/N Ratio |
Over 95 dB (A-weight, unbalanced output) |
Harmonic Distortion |
Under 1% (typical) |
Frequency Response |
100 - 15,000 Hz, ±3 dB |
Operation Temperature |
-10°C to +45°C |
Dimensions |
214 (W) x 35 (H) x 100.5 (D) mm(8.4"x 1.39"x 6.06" ) (excluding antenna) |
Weight |
580g(1.08lb) |
Frequency Bands |
606-614, 719-744, 854-865 MHz |
|
