S5.5 Series
Handheld System

  • S5.5 Receiver
  • S5.5 Handheld

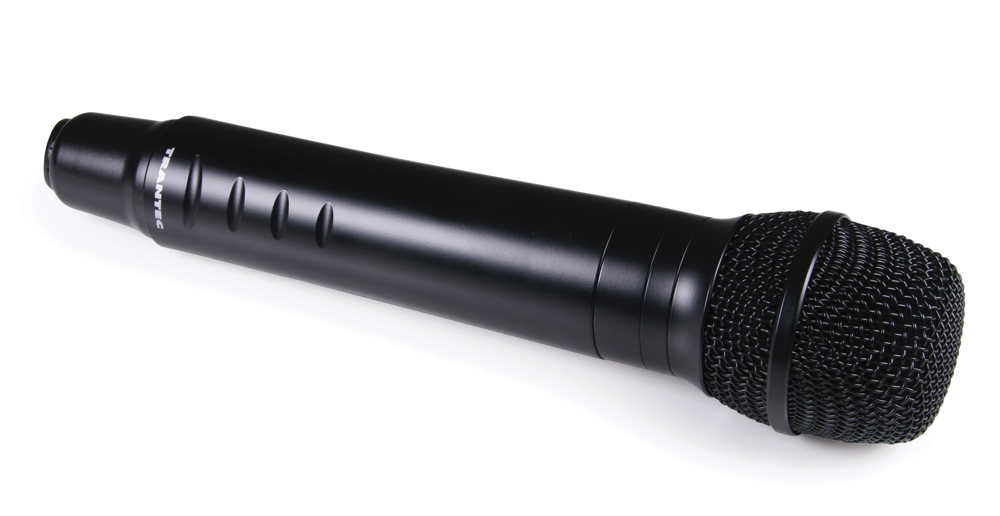

S5.5 Handheld S5.5 Handheld
Fully synthesised UHF handheld transmitter with features including: integral LCD, IR data link, battery status indicator, digital gain control, microphone mute switch.
  • Simple programming of transmitter with built-in Infra-red data link
  • Frequency & Power lock facility
  • Single AA operation of transmitters with battery life of over 10 hours
  • Integral antenna
  • Clear and intuitive LCD display
  • Colour coded ID band
  • Professional metal enclosure.
Options:
  • S5.5 HDX Dynamic Capsule
  • S5.5 HCX Condenser Capsule
S5.5 HDX/HCX
S5.5-HDX S5.5-HCX
RF Carrier Power Less than 50mW(Factory preset 10mW ERP)
Maximum Input Level 146dB SPL
(microphone sensitivity: Gain "0")		 142dB SPL
(microphone sensitivity: Gain "0")
Audio Frequency Response 60 Hz - 20 kHz 90 Hz - 20 kHz
Dynamic Range 110 dB or more (with S5.5-RX)
Battery LR6 (Single AA)
Battery Life 10 hours (Alkaline)
Indicator LCD display, Power lamp
Function Mute switch, Infra-Red link port, Battery life indicator (4 steps), Microphone sensitivity adjustment (Gain 0-2; 12dB)
Dimensions Ø50 x 247.9 mm (Ø1.97" x 9.76") Ø50 x 232.9 mm (Ø1.97" x 9.76")
Weight 380g (0.84lb) (with battery) 300g (0.84lb) (with battery)
