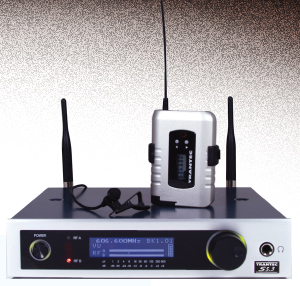

S5.3 Receiver
Fully synthesised UHF dual conversion receiver with features including graphic LCD, display jog wheel, IR data link, and headphone monitor.
- True diversity operation
- Up to 640 selectable frequencies
- USB based computer monitoring
- Frequency scan function
- Integral triple tone grip/noise and signal strength mute circuit for protection against external interference
- Simple programming of transmitter with built-in Infra-red data link
- Clear and intuitive LCD displays
- Professional metal enclosure.
|
S5.3-RX
| Power Consumption |
300 mA (13 V DC) |
| Diversity System |
Space diversity (true diversity) |
| Audio Output |
Line: -22 dB*/ Mic: -62 dB* Line/Mic selectable, 600 Ω, balanced, XLR-3-32 type connector Headphone: max. 100 mW 16 Ω, unbalanced, phone jack -28 dB*, 600 Ω, unbalanced, phone jack |
| Antenna Phantom Power |
9 V DC, 30 mA (max) (Available to turn off phantom power) |
| Receiving Sensitivity |
0 dB μV or less (12 dB SINAD) |
| Squelch Sensitivity |
6 - 36 dB μV variable |
| Squelch System |
Using together of noise SQ, carrier SQ and tone SQ |
| Indicator |
LCD, Power lamp, Mute lamp, ANT A/B lamp |
| S/N Ratio |
110 dB or more (A-weight) |
| Harmonic Distortion |
1% or less (typical) |
| Frequency Response |
50 Hz - 20 kHz, ±3 dB |
| Function |
Battery indicator (7 steps), Headphone output, Infra-Red link port, Channel scan, Monitoring software with USB connectivity |
| Dimensions |
210 (W) x 46 (H) x 210 (D) mm (8.27" x 1.81" x 8.27") (excluding antenna) |
| Weight |
1.3kg (2.87lb) |
| Frequency Bands |
606-622, 830-866, 854-865 MHz |
|
