Infrared Wireless Distributor

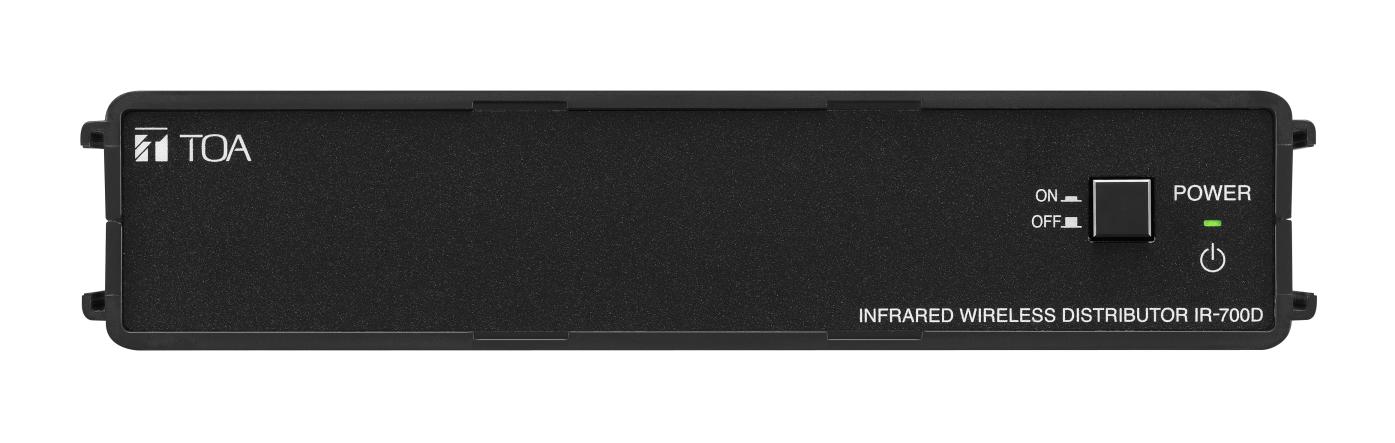

IR-700D

The IR-700D is a receiver distributor used in the TOA's infrared wireless microphone system.It employs 4 receiver mixing inputs and 2 distribution outputs. By using the IR-700D in conjunction with the IR-702T Infrared Wireless Tuner, up to 16 infrared wireless receivers can be connected to the IR-702T.

Specification
Power Source AC mains
Power Consumption 25 W or less
Input/Output 4 mixing inputs
Band-Pass Frequency 3.0 - 6.0 MHz
Gain 0 dB (±3 dB)
Infrared Receiver Input 75 Ω
Number of Connectable Conference Receiver 16 (YW-1024 × 4)
Distribution Output 75 Ω
Operating Temperature -10 ℃ to +50 ℃ (14 ゜F to 122 ゜F)
Operating Humidity 30 % to 85 %RH (no condensation)
Finish Case: ABS resin
Dimensions 210 (W) × 44 (H) × 200.9 (D) mm (8.27 × 1.73" × 7.91)
Weight 640 g (1.41 lb) (unit only)
Accessory AC adapter* (DC cord length: 1.5 m (4.92 ft) x 1
Option Rack mounting bracket: MB-WT3
*Not supplied with the IR-700D(KR). For the usable power supply cord and AC adapter contact your nearest TOA dealer.
