Battery Charger

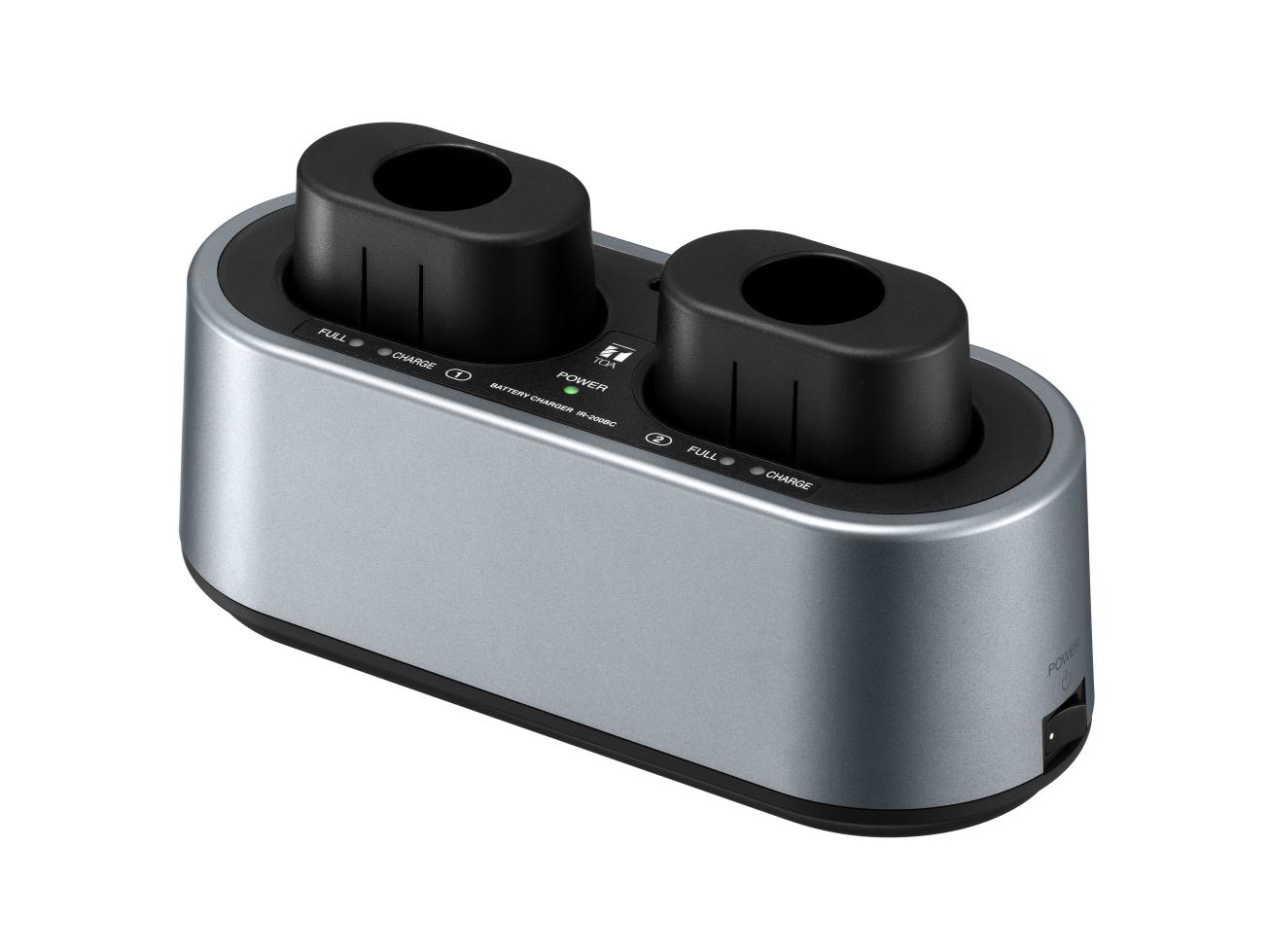

IR-200BC

The IR-200BC is a dedicated battery charger for the IR-200M and IR-300M Infrared Wireless Microphones. It employs a quick charging system for nickel metal hydride (Ni-MH) batteries, allowing up to 2 infrared wireless microphones to be fully charged within 3 hours.

Specification
Power Source AC mains, 50/60 Hz (supplied from the included AC adapter (*1))
Power Consumption Max. 2 A
Charging Time Max. 3 h
Number of Wireless Microphones to be Charged Simultaneously 2 pieces (*2)
Operating Temperature 0 ℃ to +40 ℃ (32 ゜F to 104 ゜F)
Operating Humidity 30 %%% to 85 %%%RH (no condensation)
Finish Case: ABS resin, metallic gray, paint, 50 % gloss
Microphone receptacle section: PPE resin, black
Dimensions 238 (W) × 109.5 (H) × 98 (D) mm (9.37" × 4.31" × 3.86")
Weight 635 g (1.4 lb) (unit only, including mounting adapter (accessory))
Accessory Mounting adapter (preinstalled on the unit) …2, AC adapter (DC cord length: 1.8 m (5.91 ft))(*1) …1, Power cord (2 m (6.56 ft))(*1) …1
Option Ni-MH battery: IR-200BT-2 (containing 2 pieces)
(*1) Not supplied with the IR-200BC (KR version). For the usable power supply cord and AC adapter, contact your nearest TOA dealer.
(*2) Using the mounting adapter allows one each of the IR-200M and IR-300M to be charged in combination.
Note that nickel metal hydride (Ni-MH) batteries other than the dedicated battery IR-200BT cannot be charged.
