YM-1J Microphone Connector

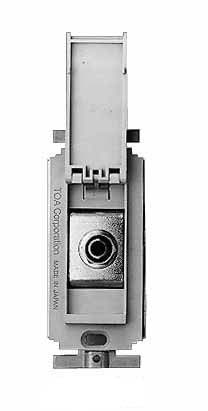

YM-1J
| Jack | Double pole jack |
|---|---|
| Usable Cable | 2 Microphone vinyl cable with sectional area of 0.75 〜 2.0 mm |
| Usable Plate | YP-1AF |
| Usable Plug | Single or double pole plug |
| Finish | Cover : ABS resin (off white) Frame : Steel plate (t=1.2) |
| Dimensions | 45 (W) × 110 (H) × 48.1 (D) mm |
| Weight | 75 g |
| Accessory | Screw M4 × 35……2 |
- ※When routing a power or speaker line and a microphone line through the same electric box, provide a barrier between the two for insulation.
2
- ※For cables with sectional area of under 0.75 mm , fold back their cores to increase the sectional area before making a connection.
- ※H(hot), C(cold), and E(ground) are shorted. Therefore, mixers or amplifiers using phantom power cannot be used.
