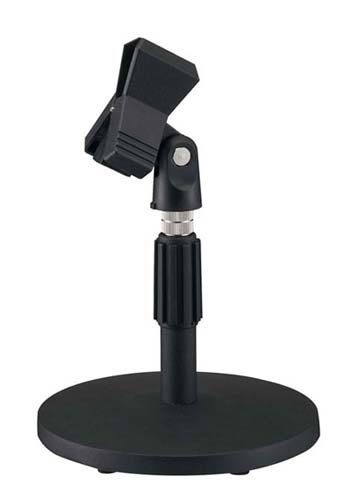

ST-65A Microphone Stand
ST-65A
The ST-65A is a desktop microphone stand, and the stand shaft of two sections is provided. The upper shaft can be freely raised and lowered from 120 mm to 175 mm in height. The unit is supplied with the clip type microphone holder allowing to hold the microphone body by 35 mm in maximum diameter.
| Mounting Screw | W5/16 thread (thread adapter) W5/8 thread (inner pipe) |
|---|---|
| Applicable Microphone | φ18 - φ35 mm in diameter Mountable weight: Max. 500 g |
| Finish | Shaft: Steel pipe for general use Inner pipe: Chrome plating Outer pipe: Black, semi-gloss, paint Base: Iron casting, black, semi-gloss, paint |
| Weight | 1 kg (without accessory) |
| Accessory | Clip type microphone holder (W5/16 thread) …1 |
