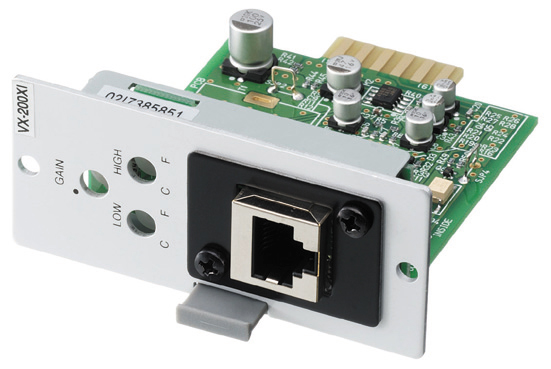

VX-200XI Audio Input Module with Control Input

VX-200XI

The VX-200XI module is designed to be used in conjunction with the VX-2000 System Manager, and comes with control input terminals, low-cut and high-cut filters, and gain controls.

Specification
* 0 dB = 1 V
Power Source Supplied from VX-2000
Current Consumption Under 30 mA
Input Sensitivity (Rated Output -20 dB) MIC: -70 to -42.5 dB* (adjustable)
LINE: -20 to +7.5 dB* (adjustable)
MIC or LINE selectable by the built-in switch
Low Cut Filter (100 Hz) 9 to 15 dB attenuation (adjustable)
High Cut Filter (10 kHz) 8 to 14 dB attenuation (adjustable)
Distortion Under 0.5%
Frequency Response 50 - 20,000 Hz
Phantom Power 15 V (open), 6 V (current consumption: 3.3 mA)
Control Input No-voltage make contact, open voltage: 17 V DC,
short-circuit current: Under 5 mA
Input Connector RJ45 female connector
Twisted-pair straight cable (TIA/EIA-568A standard)
Finish Panel: Aluminum, hairline
Dimensions 35 (W) × 78 (H) × 88 (D) mm
Weight 70 g
Accessory Mounting screw……2
Option Isolation transformer: IT-450
Applicable Model VX-2000
