VX-200SZ-2 Impedance Detection Module

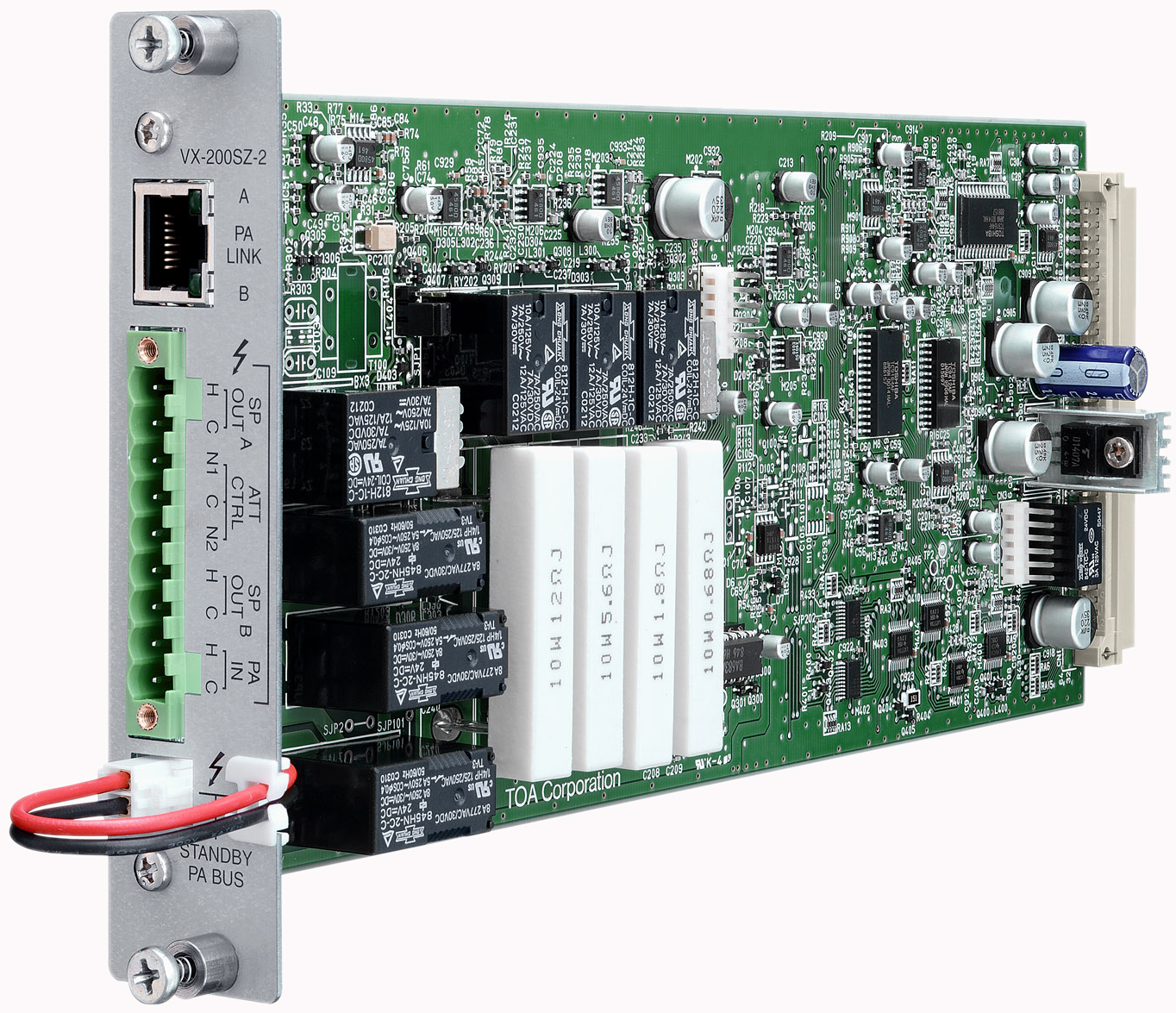

The VX-200SZ-2 is an audio signal output module of the VX-2000 system with speaker line impedance detection. This module is to be mounted in the VX-2000SF Surveillance Frame and detects speaker line short circuits, open circuits by comparing impedance readings, and ground fault. Since the module is equipped with 2 speaker outputs (A and B), broadcasts can be maintained even if one of the two outputs fails. Failures are indicated by the LED on the panel.

Power Source Supplied from VX-2000SF
Current Consumption Under 170 mA
Power Amplifier Link RJ45 female connector for connecting the VP-2064, VP-2122, VP-2241,
VP-2421 Power Amplifier.
Twisted-pair straight cable (TIA/EIA-568A standard)
External Attenuator Control Output Plug-in screw connector, relay, no-voltage make contact output,
transfer type, withstand voltage: 30 V DC, 250 V AC,
contact current: Under 7 A (DC), under 7 A (AC)
Applicable cable diameter: AWG 24 - AWG 16
Speaker Output 2 outputs (A, B), plug-in screw connector
Applicable cable diameter: AWG 24 - AWG 16
Power Amplifier Input Plug-in screw connector for connecting the VP-2064, VP-2122, VP-2241,
VP-2421 Power Amplifier.
Applicable cable diameter: AWG 24 - AWG 16
Fault Detection System Short circuit, open circuit (impedance detection method), ground fault
Finish Panel: Surface-treated steel plate
Dimensions 30.5 (W) × 132.6 (H) × 290.3 (D) mm
Weight 335 g
Accessory Plug-in screw terminal……1
Option Equaliser card: VX-200SE
Applicable Model VX-2000SF
