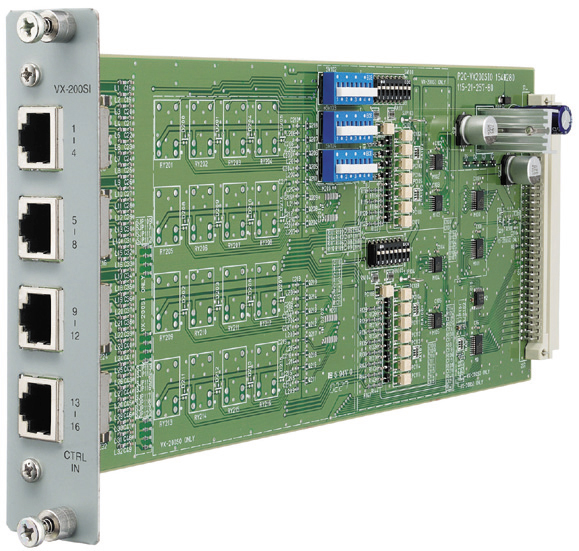

VX-200SI Control Input Module

VX-200SI

TOA's VX-200SI Control Input Module is used to increase the number of control inputs to be used in the VX-2000 system. It features 16 control inputs and is mounted in the VX-2000SF Surveillance Frame.

Specification
Power Source Supplied from VX-2000SF
Current Consumption Under 100 mA
Control Input 16 inputs, no-voltage make contact, open voltage: 24 V DC,
short circuit current: under 10 mA, RJ45 connector
Finish Panel: Surface-treated steel plate
Dimensions 30.5 (W) × 132.6 (H) × 290.3 (D) mm
Weight 200 g
Applicable Model VX-2000SF
