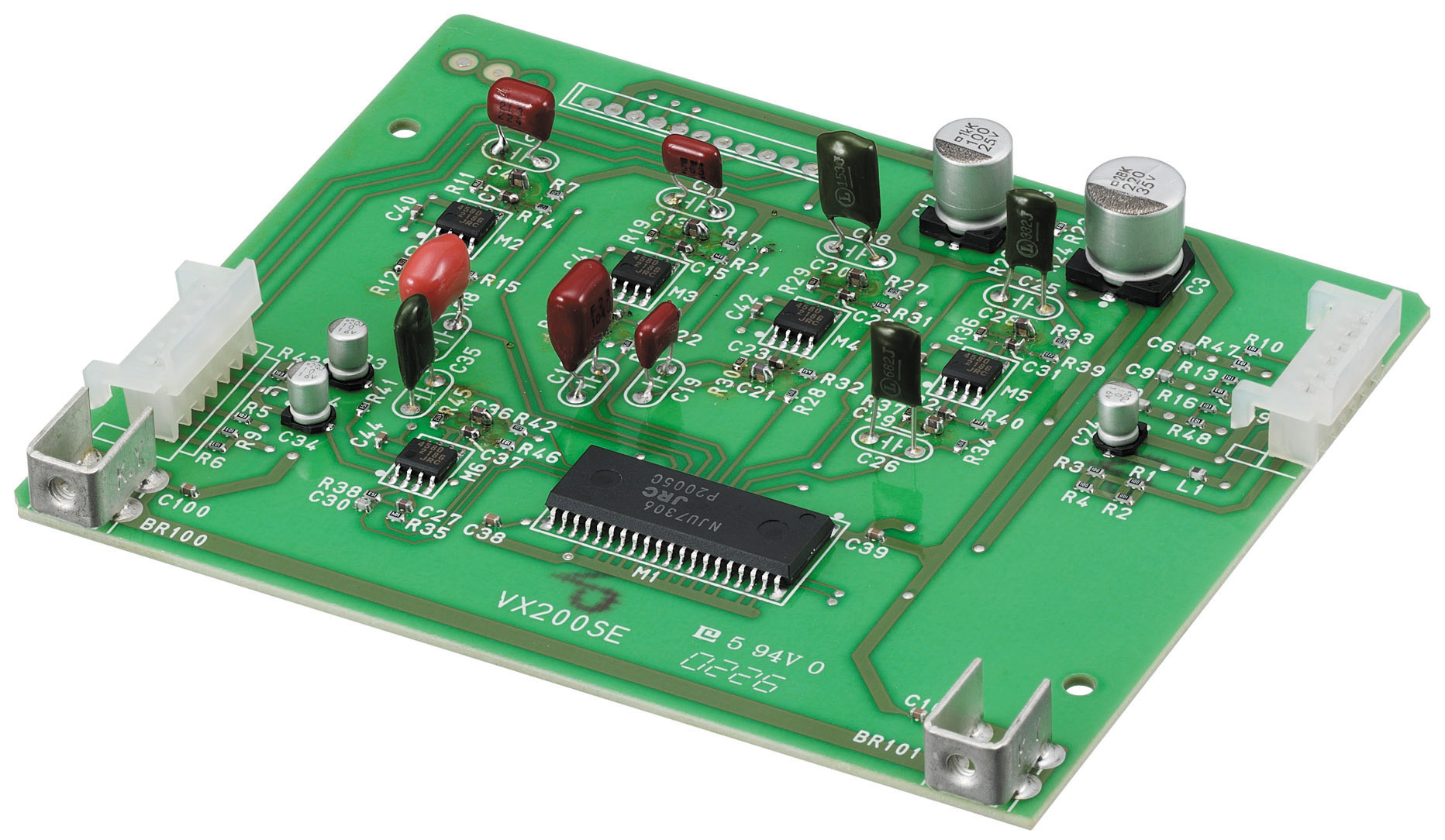

VX-200SE Equalizer Card

VX-200SE

The VX-200SE Equaliser is a 9-band, 1-channel equaliser to be mounted on the circuit board of the VX-200SP Pilot Tone Detection module or VX-200SZ Impedance Detection module.

Specification
Power Source Supplied from VX-200SZ, VX-200SP
Current Consumption Under 50 mA
Equaliser Centre Frequency 80 Hz, 125 Hz, 250 Hz, 500 Hz, 1 kHz, 2 kHz, 4 kHz, 8 kHz, 12 kHz
Gain Range ±12 dB, adjustable in 2 dB steps
Dimensions 110 (W) × 90 (H) × 21.4 (D) mm
Weight 50 g
Applicable Model VX-200SZ, VX-200SP
