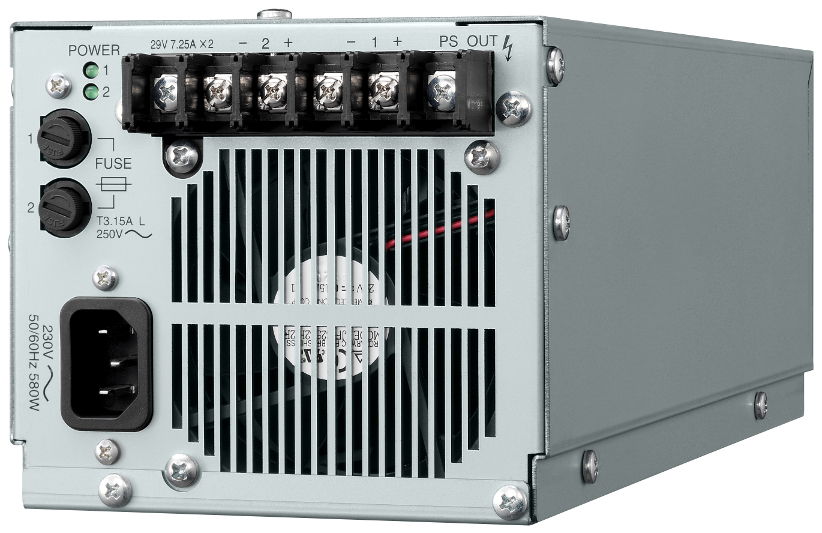

VX-200PS Power Supply Unit

VX-200PS

The VX-200PS Power Supply Unit is mounted in the VX-2000PF Power Supply Frame when in use. There are 2 DC output channels per unit. Use the VX-200PS in the number suited to the required total system power.

Specification
Power Source 230 V AC, 50/60 Hz
Power Consumption 580 W
PS OUT Rated output: 210 W (29 V, 7.25 A) × 2
Peak output: 400 W × 2
M4 screw terminal, distance between barriers: 11 mm
Operating Temperature 0℃ to +40℃
Applicable Frame VX-2000PF
Finish Surface-treated steel plate
Dimensions 135 (W) × 118.2 (H) × 333.8 (D) mm
Weight 13.2 kg
Accessory Fuse (T3.15 A L) ……1, Power cable ……1
