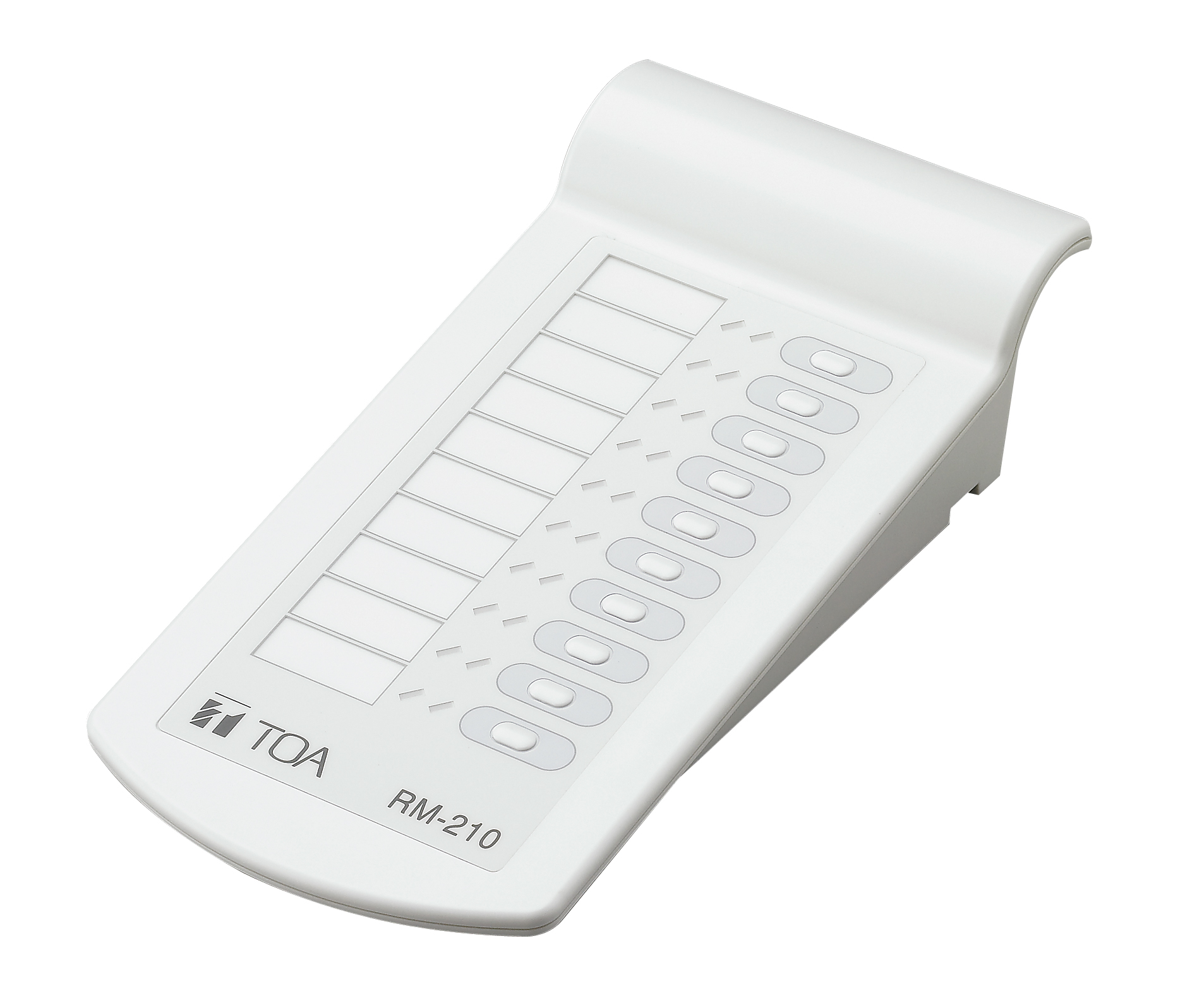

RM-210 Remote Microphone Extension

RM-210

The RM-210 is an extension unit for increasing the number of function keys of TOA's Remote Microphones.

Specification
Current Consumption 20 mA max. (in terms of RM-200M's DC power input)
75 mA max. (in terms of DC power inputs of RM-200X and RM-200XF)
80 mA max. (in terms of DC power inputs of RM-200SA and RM-200SF)
Connection Connection by way of dedicated cable
Number of Function Keys 10
Finish ABS resin, blueish gray (PANTONE 538 or its equivalent)
Dimensions 110 (W) × 76.5 (H) × 215 (D) mm
Weight 350 g
Accessory Extension cable ……1, Linkage bracket A ……2, Linkage bracket B ……1,
Screw for linkage bracket ……12
Applicable Unit (option) RM-200M, RM-200SA, RM-200SF, RM-200X, RM-200XF
