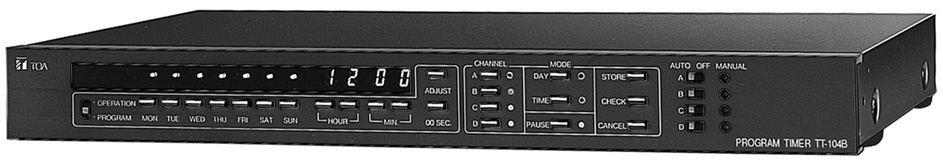

TT-104B Program Timer
TT-104B TET
The TT-104B is a program timer that comes with 4 outputs and controls 4 different broadcasts. With use of an optional rack-mounting bracket, it can be mounted in an EIA Standard equipment (occupying 1 unit size).
| Power Source | 110 V AC, 50/60 Hz |
|---|---|
| Power Consumption | 3 W |
| Displayed Contents | Day of the week, hour and minute |
| Programmable Item | Day of the week, hour, minute, output channel |
| Number of Channels | 4 channels (A,B,C,D) |
| Output System | No-voltage (DRY) make contact (5-second pulse make output) |
| Output Capacity | 24 V DC, 0.5 A |
| Output Terminal | M4 screw terminal, distance between barriers: 9 mm |
| Program Capacity | 30 steps per channel |
| Clock Accuracy | ±5 seconds per month (25℃) |
| Power Outage Protection Period | 100 hours |
| Operating Temperature | 0℃ to +50℃ |
| Finish | Panel: Aluminum, black, 30% gloss, paint Case: Pre-coated steel plate, black |
| Dimensions | 420 (W) × 47.5 (H) × 246.5 (D) mm |
| Weight | 2.5 kg |
| Option | Rack-mounting bracket: MB-15B |
