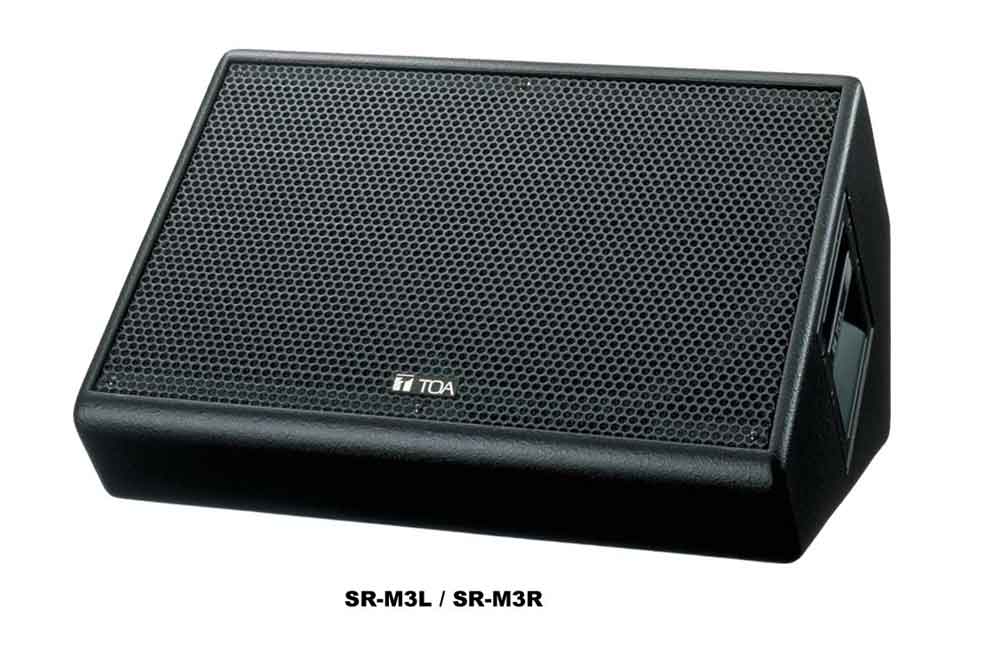

SR-M3R 2-Way Stage Monitor Speaker System

SR-M3R

TOA's SR-M3R is a two-way stage monitor speaker featuring the high handling power capacity, high sound quality, and robust construction. It has an internal passive network and is operated by a single amplifier.

Specification
Enclosure Bass-reflex type
Power Handling Capacity Continuous pink noise: 200 W
Continuous program: 600 W
Rated Impedance 8 Ω
Sound Pressure Level 100 dB (1 W, 1 m)
Frequency Response 65 - 20,000 Hz
Crossover Frequency 1 kHz
Speaker Component Low frequency: 38 cm dia cone speaker
High frequency: CD horn (40゜ × 60゜) fitted with compression driver
Input Connector Neutrik NL4MP × 2
Finish Enclosure: Plywood, black, paint
Front grille: Steel plate, black, acrylic paint
Dimensions 673 (W) × 394 (H) × 505 (D) mm
Weight 34 kg
