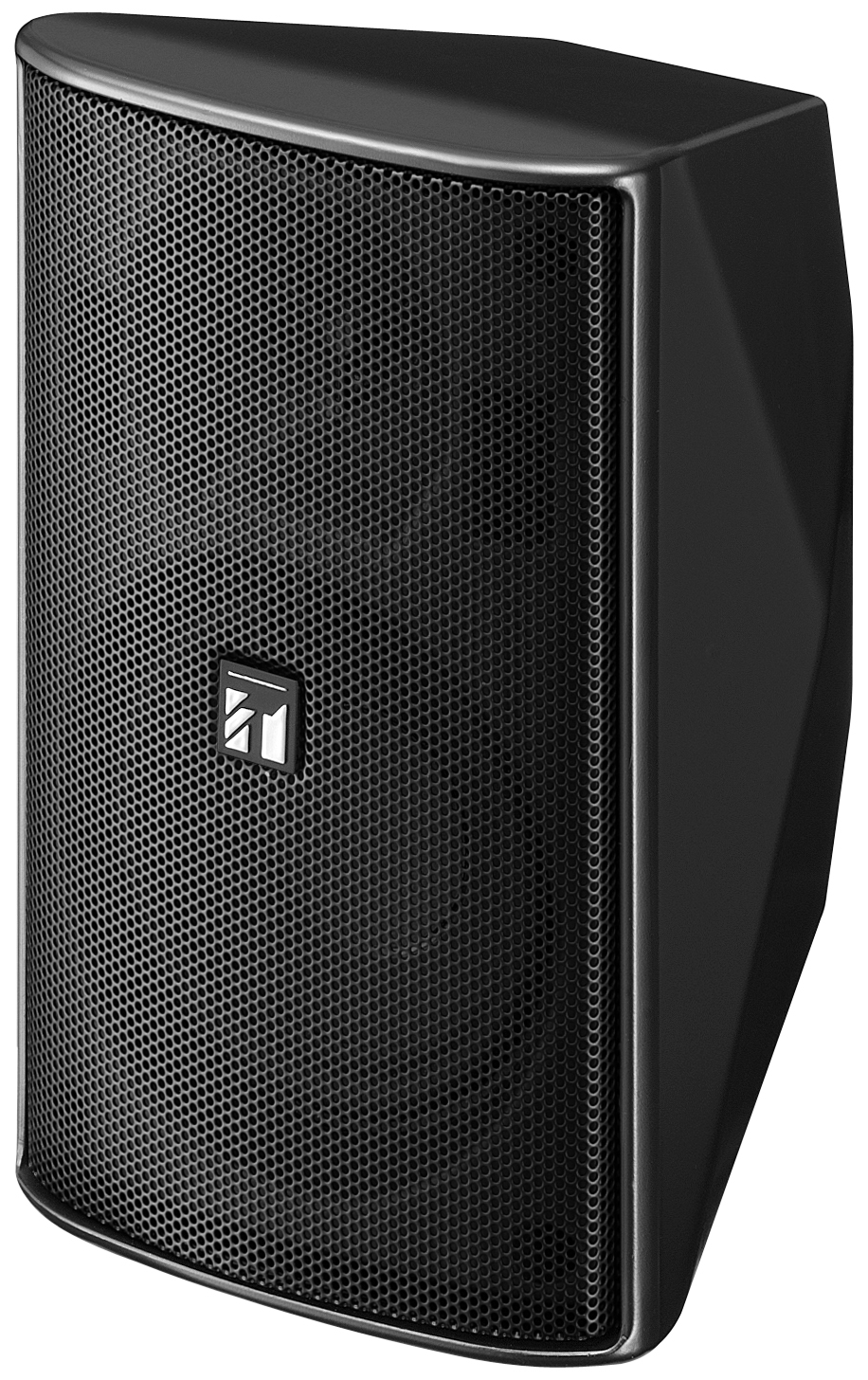

F-1000BTWP Wide-dispersion Speaker System

F-1000BTWP

The F-1000 Series Speaker are compact two-way speaker systems designed for high efficiency, wide range, and high power input handling capability. These speaker systems can be installed in a manner ideal for the location and intended application. The F-1000BTWP features a water-proof design (splash-proof type meeting IPX4 standard), so that it can be permanently installed outdoors.

Specification
Enclosure Bass-reflex type
Rated Input 15 W
Rated Impedance 100 V line: 670 Ω (15 W), 2 kΩ (5 W), 3.3 kΩ (3 W), 10 kΩ (1 W)
70 V line: 330 Ω (15 W), 670 Ω (7.5 W), 2 kΩ (2.5 W), 3.3 kΩ (1.5 W), 10 kΩ (0.5 W)
Sensitivity 87 dB (1 W, 1 m) at installation in 1/2 free sound field
Frequency Response 85 Hz - 20 kHz, -10 dB at installation in 1/2 free sound field
Crossover Frequency 5 kHz
Directivity Angle Horizontal: 90゜, Vertical: 90゜
Speaker Component Low frequency: 10 cm (4") cone-type High frequency: Balanced dome tweeter
Input Terminal Push-in terminal
Water Protection IPX4
Operating Temperature -10 ℃ to +50 ℃ (14 ゜F to 122 ゜F)
Finish Enclosure: HIPS, black
Punched net: Surface-treated steel plate, black, anticorrosive paint
Joint bracket, wall bracket: Stainless steel
Speaker bracket: Die-cast aluminum, black, paint
Dimensions 130 (W) × 202 (H) × 131 (D) mm (5.12" × 7.95" × 5.16")
Weight 2 kg (4.41 lb) (including the supplied brackets)
Accessory Speaker bracket …1, Joint bracket …1, Wall bracket …1,
Bracket fixing screw …1 set, Terminal cover …1, Terminal cover mounting screw …4
Option Speaker mount bracket: YS-60B
