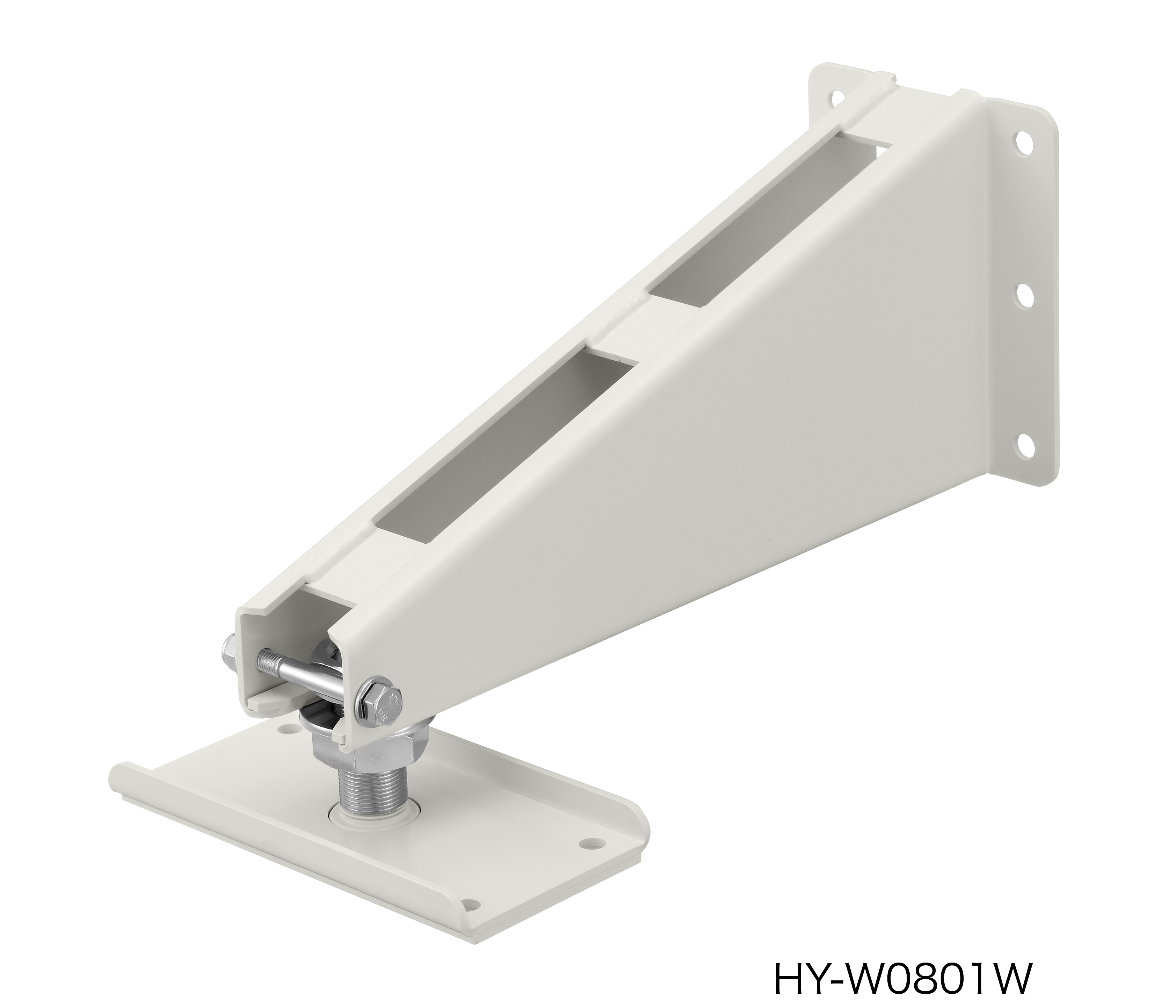

HY-W0801W Wall Mount Bracket

HY-W0801W

The HY-W0801W Wall Mount Bracket is designed to mount the speaker system on a wall in conjunction with the optional speaker mount bracket.

Specification
Finish Rolled steel plate, white, semi-gloss, paint
Maximum Speaker Load 32 kg (70.55 lb)
Weight 4 kg (8.82 lb)
Accessory Speaker mounting bolt (with washer) …… 4
Option Mounting bracket: HY-1200HW, HY-1200VW, HY-1500HW, HY-1500VW
Applicable Speaker (option) HS-120W, HS-150W, HS-1200WT, HS-1500WT
