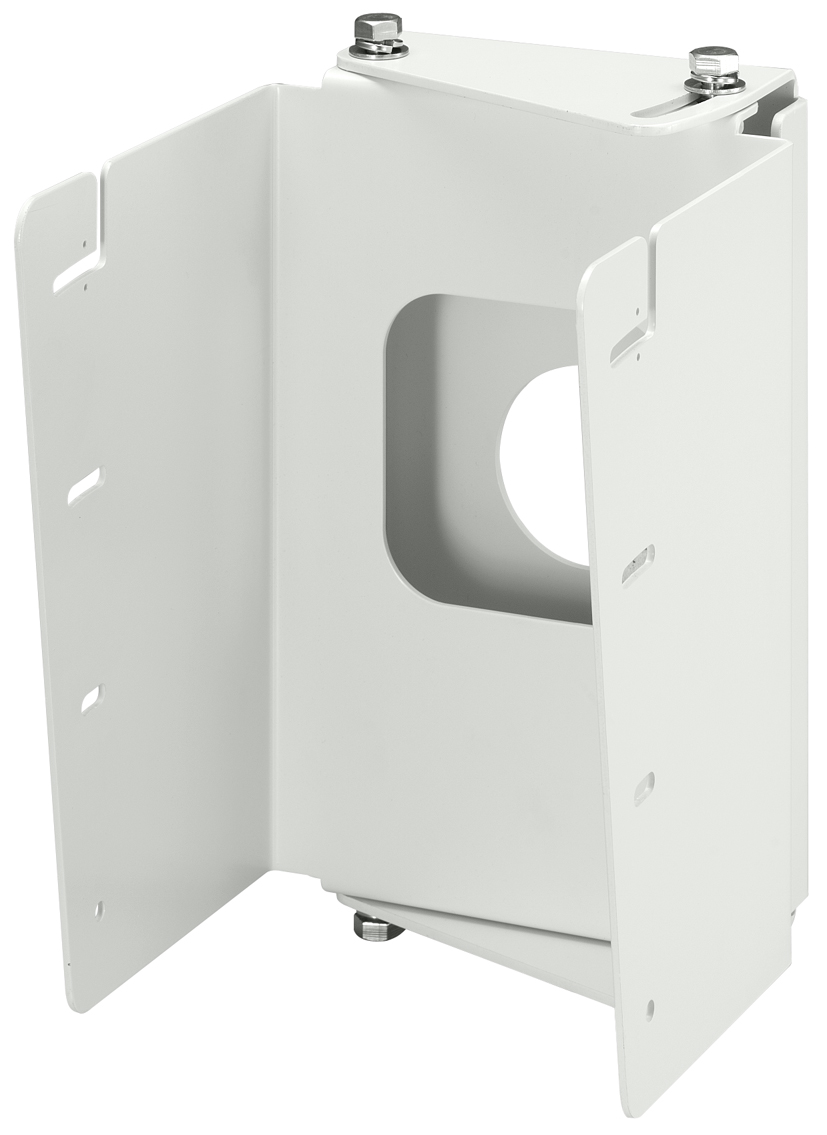

SR-TB4 Wall Tilt Bracket

SR-TB4

The SR-TB4 is designed to be used to mount the Line Array Speaker system SR-S4L or SR-S4S on a wall. The downward angle can be set to 0゜ - 5゜, and the horizontal angle to up to 20゜.

Specification
Number of Speakers to be Mounted 1
Finish Steel plate, white, paint
Dimensions 166 (W) × 247 (H) × 201 (D) mm (complete assembly)
Weight 3.2 kg
Product Composition Speaker mounting bracket …1, Bracket base …1
Accessory Bracket assembling screw (M8 upset head) …4,
Speaker mounting screw (M5 upset head) …8
