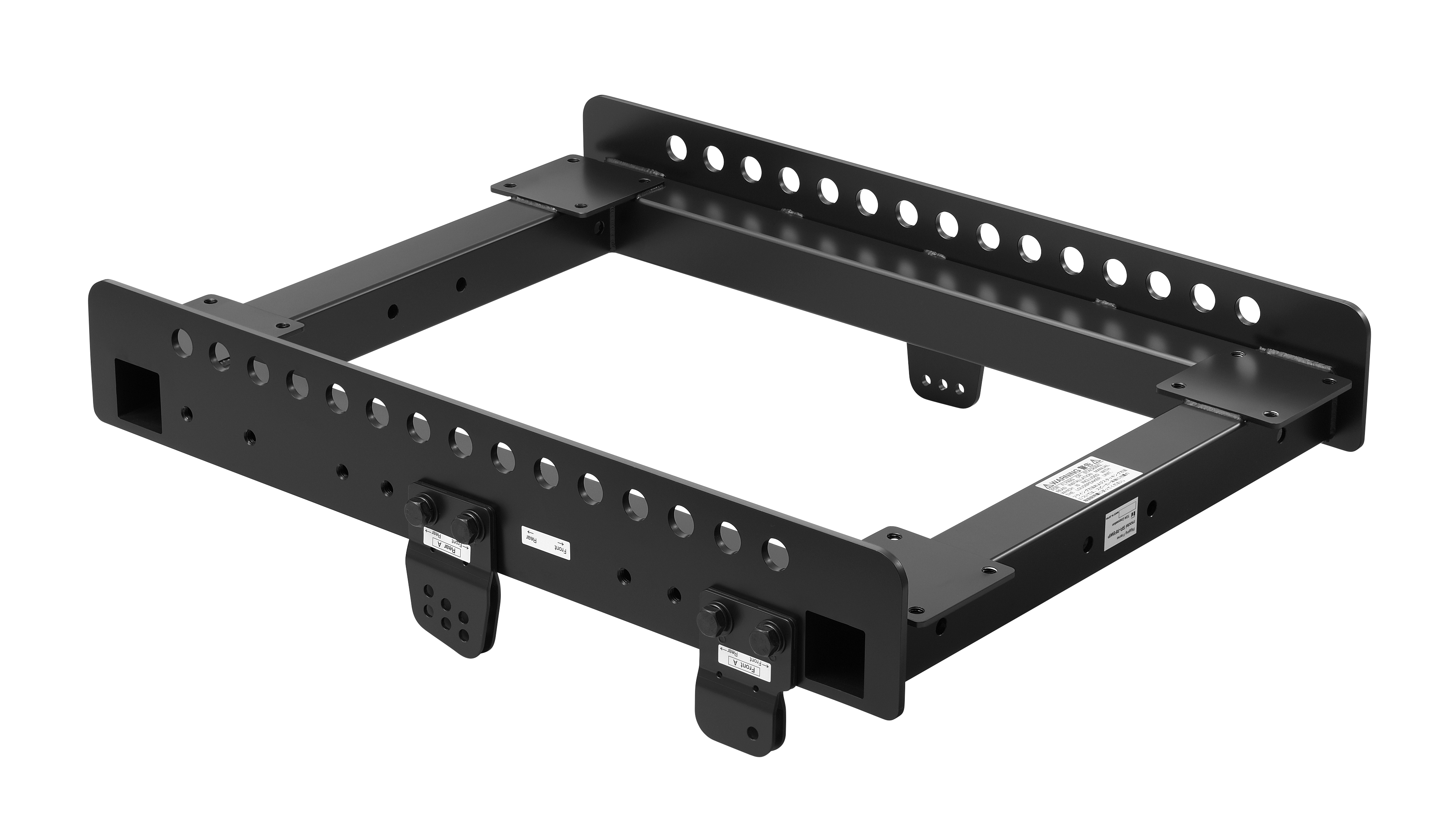

SR-RF8 Rigging Frame

SR-RF8

The SR-RF8 Rigging Frame is used for flying or stacking the SR-C8L, SR-C8S, or SR-C15B Line array speakers.

Specification
Applicable Speaker SR-C8L, SR-C8S, SR-C15B
Number of Speakers to be Mounted Flying: Max. 12 (SR-C158B (option) is counted as 2 pieces.)
Stacked system: Max. 8 (SR-C15B (option) is counted as 2 pieces.)
Finish Steel plate, black, paint
Dimensions 510 (W) × 167 (H) × 690 (D) mm (20.08" × 6.58" × 21.17") (excluding bolt)
Weight 18.5 kg (40.78 lb) (including accessories)
Accessory Plate mounting bolt (M10) …12, Fixing plate …4, Sub-woofer receptacle piece …2
Option Rigging support bracket: SR-SB8 (absolutely needed when stacking 6 or more speakers)
