SR-PB5 Wall Pan Bracket

SR-PB5

The SR-PB5 Wall Pan Bracket is designed to mount the SR-T5 Line Array speaker to a wall at a horizontal angle of 5゜ or 10゜ left or right. Use it in conjunction with the bracket supplied with the SR-T5.

Specification
Applicable Speaker SR-T5
Adjustable Angle Range Horizontal (left or right): 5゜, 10゜
Finish Steel plate, black, paint
Weight 4.1 kg (9.04 lb) (including accessories)

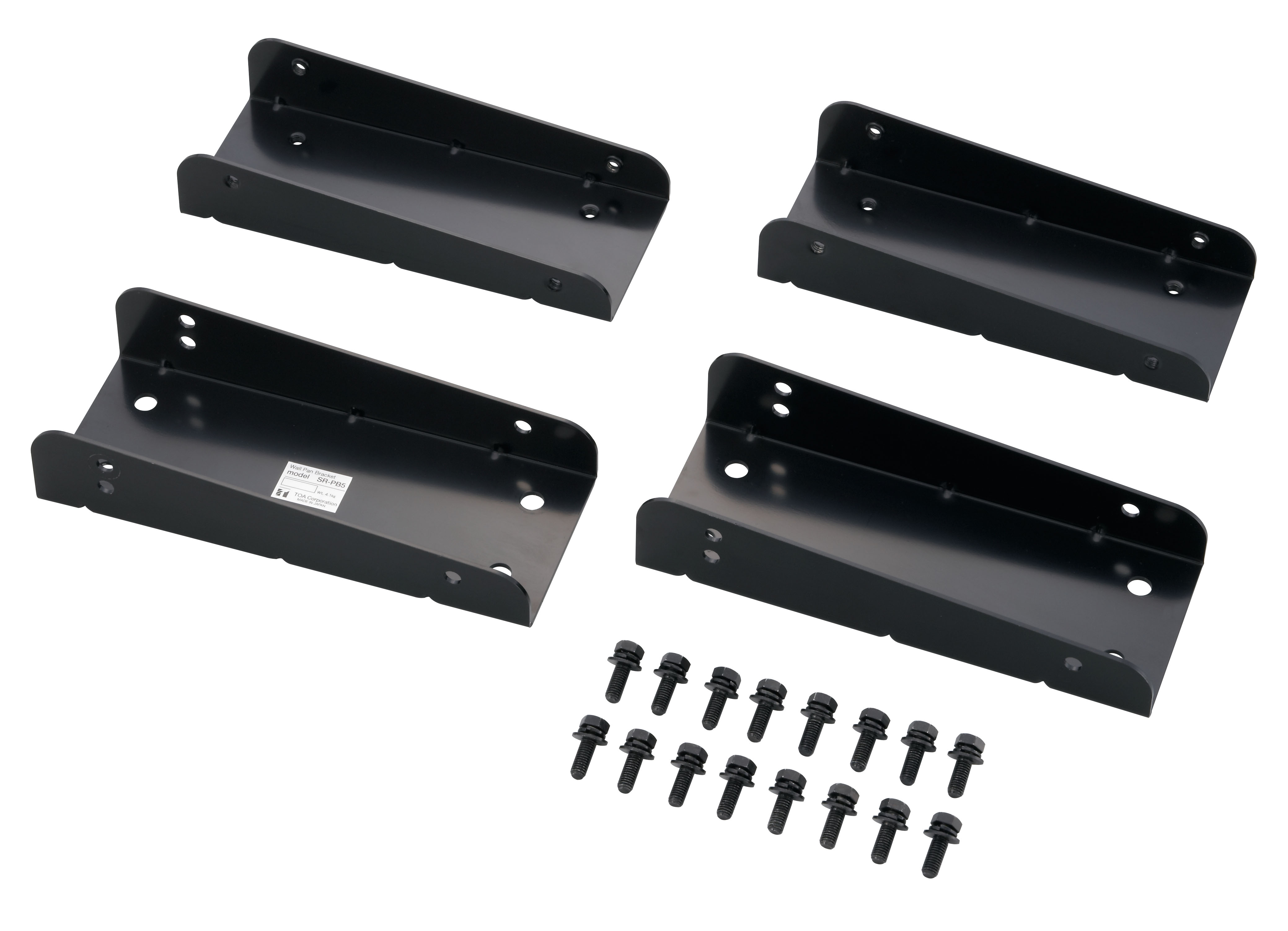

Product Composition Pan bracket A …2, Pan bracket B …2
Accessory Bracket mounting bolt …16
