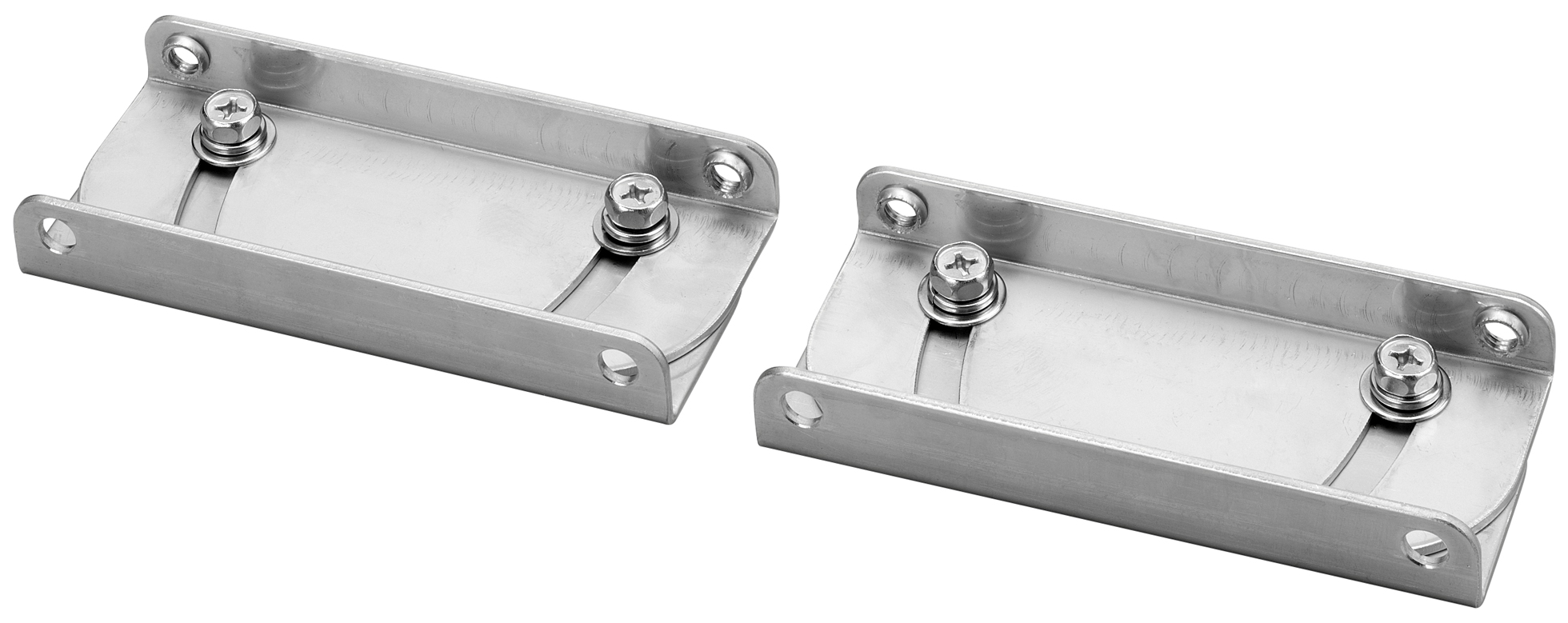

HY-WM1WP Mounting Bracket

HY-WM1WP

The HY-WM1WP is used exclusively to mount the HX-5 series speaker system to a wall or ceiling. This bracket permits the speaker to be tilted downward up to 20゜ from the horizontal when the speaker is mounted on a wall, or tilted up to 20゜ from the vertical when the speaker is mounted on a ceiling. This bracket is designed for outdoor use.

Specification
Finish Stainless steel (SUS304)
Dimensions 62 (W) × 142 (H) × 22 (D) mm
Weight 750 g
Accessory Speaker mounting bolt (M8) with washer …4
Product Composition Speaker mounting bracket …2
Note: Every speaker module must be aimed horizontally
