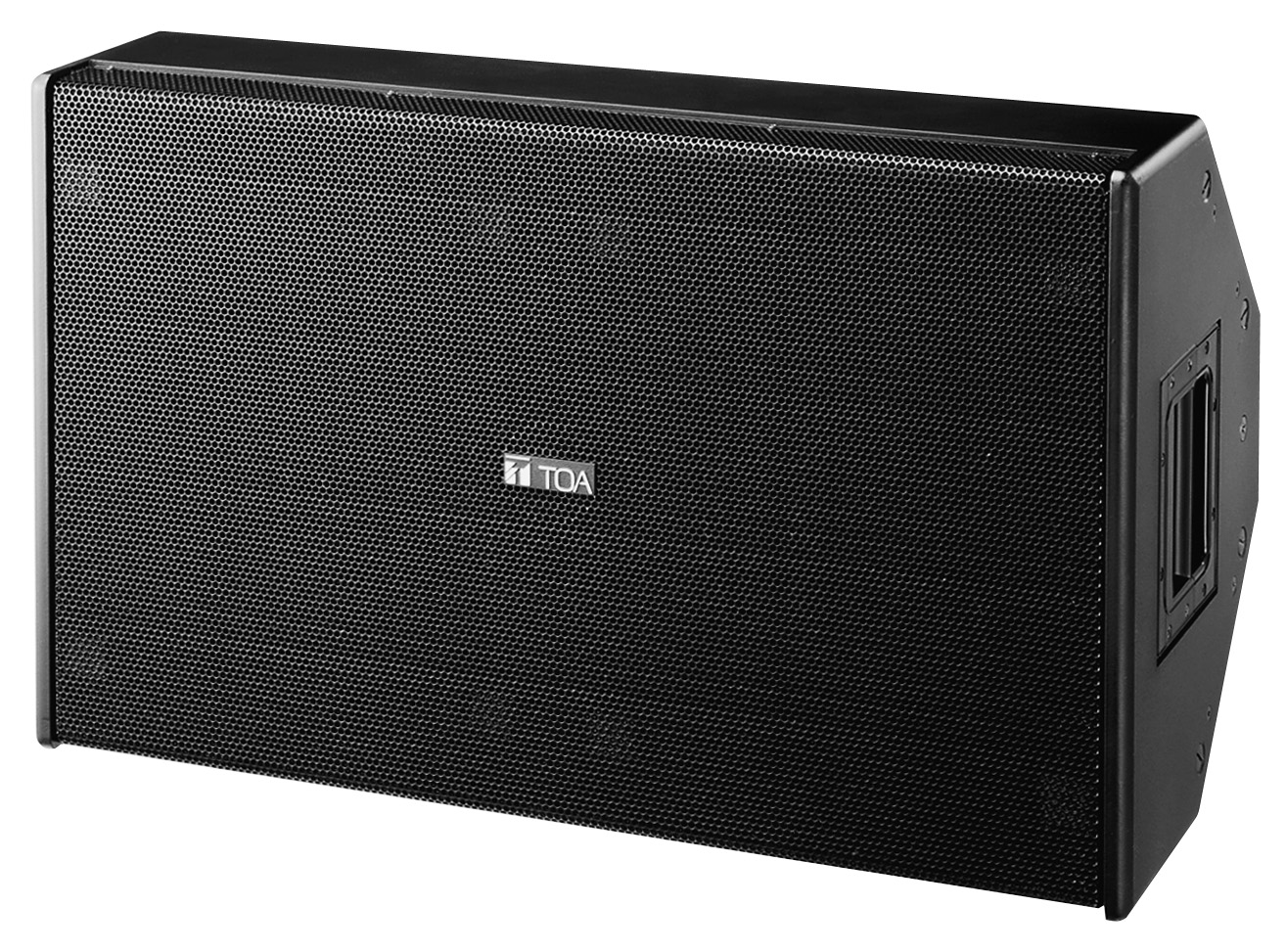

ES-0871 2-Way Speaker System

ES-0871

The ES-0871 is a heavy-duty two-way speaker system designed for use in both temporary and permanent installations. Properly-designed built-in passive network ensures superb quality and high power handling capability. The speaker's 90-degree wedge shape and its optional mounting bracket permit the speaker to be mounted closely to walls and ceilings.

Specification
Enclosure Bass-reflex type
Power Handling Capacity Continuous pink noise: 200 W
Continuous program: 600 W
Rated Impedance 8 Ω
Sensitivity 100 dB (1 W, 1 m)
Frequency Response 70 - 20,000 Hz
Crossover Frequency 1,800 Hz
Speaker Component Low frequency: 38 cm cone-type
High frequency: CD horn (90゜ horizontal × 60゜ vertical or 60゜ horizontal × 90゜ vertical)
fitted with compression driver
Input Connector Neutrik NL4MP × 2 and M5 screw terminal, distance between barriers: 12.2 mm
Finish Enclosure : Plywood, black, urethane paint
Front grille: Steel plate, black, acrylic paint
Dimensions 740 (W) × 450 (H) × 337 (D) mm
Weight 37 kg
Option Mounting bracket: HY-0871CL, HY-0871WS
