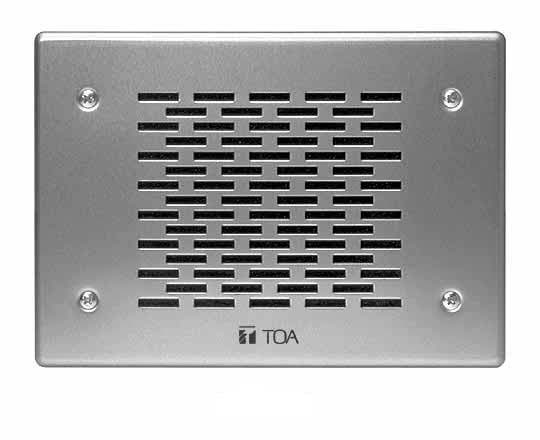

PC-391T Wall Flush-Mount Speaker


The PC-391T is a small flush-mount wall speaker. Its ideal applications include hotel and hospital rooms, and reception counters in the banks and clinics.

Rated Input 3 W
Rated Impedance 3.3 kΩ
Sound Pressure Level 90.7 dB (3 W, 1 m)
Frequency Response 150 Hz - 18 kHz
Speaker Component 7.7 cm cone-type speaker
Attenuation 0 (OFF), 1 (-12 dB), 2 (-6 dB), 3 (0 dB)
Finish Baffle: Stainless steel
Grille: Aluminum, silver
Dimensions 162 (W) × 115 (H) × 47 (D) mm (excluding the projection parts such
as a switch knob)
Weight 600 g
Accessory Switch box mounting screw ……4, Speaker mounting screw ……4,
Wood screw ……4
