YS-4CM Speaker Connector

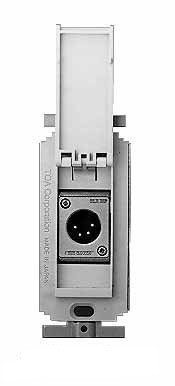

YS-4CM


Specification
Connector XLR-4-32-F77
Current Capacity 10 A (AC)
Usable Cable 600 V vinyl-insulated cable with diameter of 0.8 〜 1.6 mm or sectional
2
area of 0.9 〜 2.0 mm
Usable Plate YP-1AF
Usable Plug XLR-4-11C
Finish Cover : ABS resin (off white)
Frame : Steel plate (t=1.2)
Dimensions 45 (W) × 110 (H) × 53 (D) mm
Weight 80 g
Accessory Screw M4 × 35……2
※When routing a power or speaker line and a microphone line through the same electric box, provide a barrier between the two for insulation.
※Select the cable with sectional area and diameter suited to the speaker current.
※If a thick cable is used, the circuit board can be damaged when mounting the YS-4CM in an electrical box. Take care that excessive force is not applied to the circuit board when mounting.
