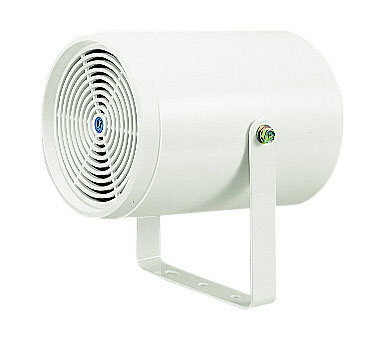

PJ-200W Projection Speaker
PJ-200W
The PJ-200W Projection Speaker is designed for indoor use. The built-in terminal board provides an easy cable connection and allows bridge wiring. Its wide frequency range makes it suitable for use in both paging and BGM applications.
| Rated Input | 20 W (50 V, 70 V, 100 V Line) |
|---|---|
| Input Impedance | 100 V Line : 500 Ω (20 W), 1 kΩ (10 W), 2 kΩ (5 W) 70 V Line : 250 Ω (20 W), 500 Ω (10 W), 1 kΩ (5 W), 2 kΩ (2.5W) 50 V Line : 125 Ω (20 W), 250 Ω (10 W), 500 Ω (5 W), 1 kΩ (2.5 W), 2 kΩ (1.25 W) |
| Preset Impedance | 500 Ω |
| Sound Pressure Level | 95 dB (1 m, 1 W) at 1 kHz |
| Speaker Component | 16 cm |
| Frequency Respons | 50 Hz - 20 kHz |
| Finish | Cabinet, Cover: ABS Resin, off-white Bracket: SPCC, off-white |
| Dimensions | 200 (W) × 255 (H) × 250 (D) mm (7.87" × 10.04" × 9.84") |
| Weight | 2.5 kg (5.51 lb) |
| Note: Avoid installing the speaker in locations which vibrate considerably | or under environments easy to be oil-contaminated. |
