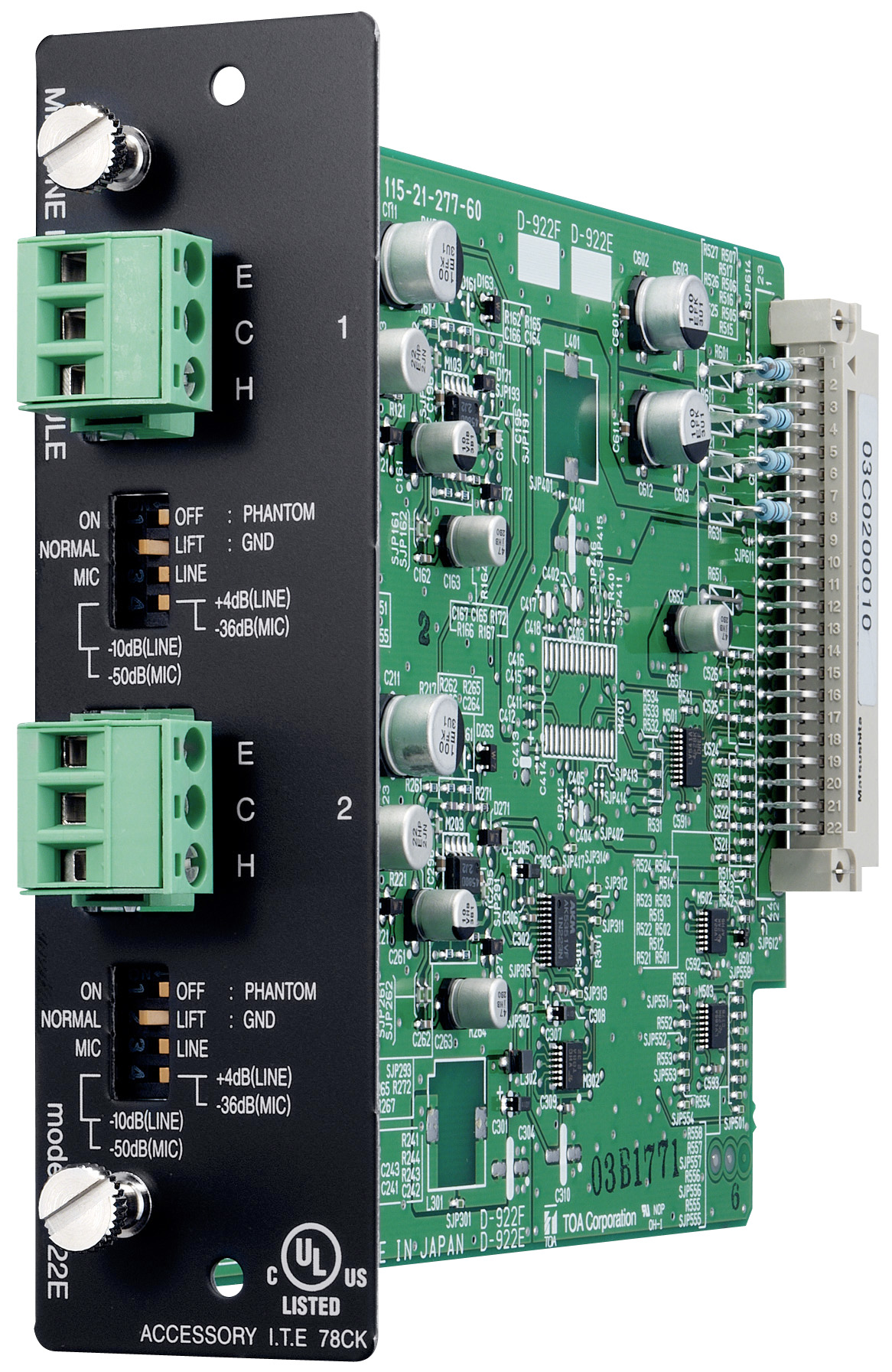

D-922E Mic/Line Input Module

D-922E

The D-922E is a 2-channel microphone/line input module designed for use with the D-901 Digital Mixer, etc. It is equipped with removable terminal block type connectors. The D-901's 4-pole DIP switch is used to set the input sensitivity, phantom power supply, and ground lifting.

Specification
* 0 dB = 0.775 V
Input 2 channels, -50/-36/-10/+4 dB* (Selectable with the DIP switch.),
4.7 kΩ, electronically-balanced, removable terminal block (3 pins)
Phantom power supply (can be set with the DIP switch)
15 V: D-901 (option), DP-K1 (option), D-2008SP (option)
12 V: SX-2100AI (option)
Ground lift switch (can be set with the DIP switch)
A/D Converter 20 bit
Sampling Frequency 48 kHz
Frequency Response 20 Hz - 20 kHz, ±1 dB (+4 dB* input)
Dynamic Range 85 dB (IHF-A weighted) or more (+4 dB* input)
Total Harmonic Distortion 0.2 % or less (+4 dB* input)
Finish Panel: Pre-coated steel plate, black, 30 % gloss
Dimensions 35 (W) × 119.5 (H) × 178.4 (D) mm
Weight 125 g
Accessory Removable terminal plug (3 pins, preinstalled on the unit) …2
