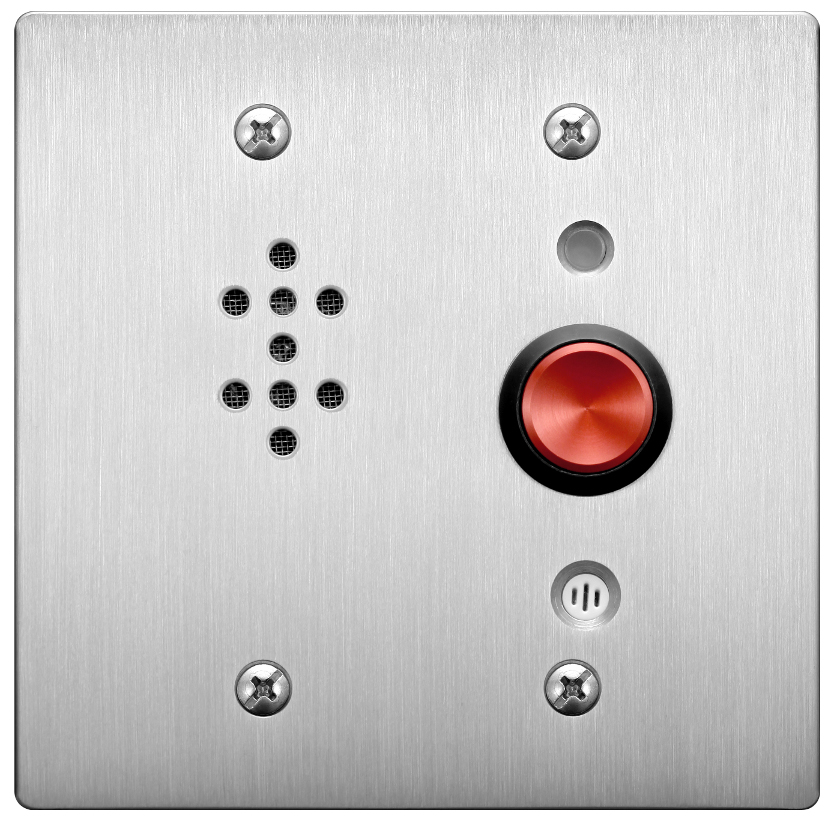

RS-480 IP Intercom Substation


The RS-480 is a substation to be connected to the N-8400RS 4-Wire Substation Interface Unit.Pressing a call button will initiate a call to a preprogrammed master station, enabling a conversation. Also, it can be used in connection with the RS-481 Option Handset.The RS-480 is equipped with a Status indicator.

Call Button Momentary (Emergency call: Press twice within 400 ms.)
Rated Input 1 W
Control Output Open collector, Maximum controlled voltage: 30 VDC
Control current: 30 mA
Internal Speaker cone-type
Internal Mic Electret condenser type
Indicator When called : Status indicator (red) flashing
In conversation : Status indicator (red) lit
Wiring Twisted pair cables (2-pair)
Transmission Range 1 km (1093 yd)/φ0.5 mm (AWG24)
1.5 km (1640 yd)/φ0.65 mm (AWG22)
2 km (2187 yd)/φ0.9 mm (AWG19)
Operating Temperature -10 ℃ to +50 ℃ (14 ゜F to 122 ゜F)
(Temperature range not to freeze the speaker and switch)
Housing Protection BS EN62262: 2002: IK02 equivalent
Dust/Water Protection IP54
Finish Panel: Stainless steel, hairline
Call Button: Metal, red
Circuit board: Weather-resistant coating
Dimensions 120 (W) × 120 (H) × 50.5 (D) mm (4.72" × 4.72" × 1.99")
Weight 575 g (1.27 lb)
Accessory Box mounting screw (No.6-32UNC × 18) ……4, Box mounting screw (M4 × 25) ……4
Applicable Box For flush-mount: 2-gang electrical box YC-302 (option)
For surface-mount: Indoor wall-mount box YC-822 (option), Outdoor wall-mount box YC-823 (option)
