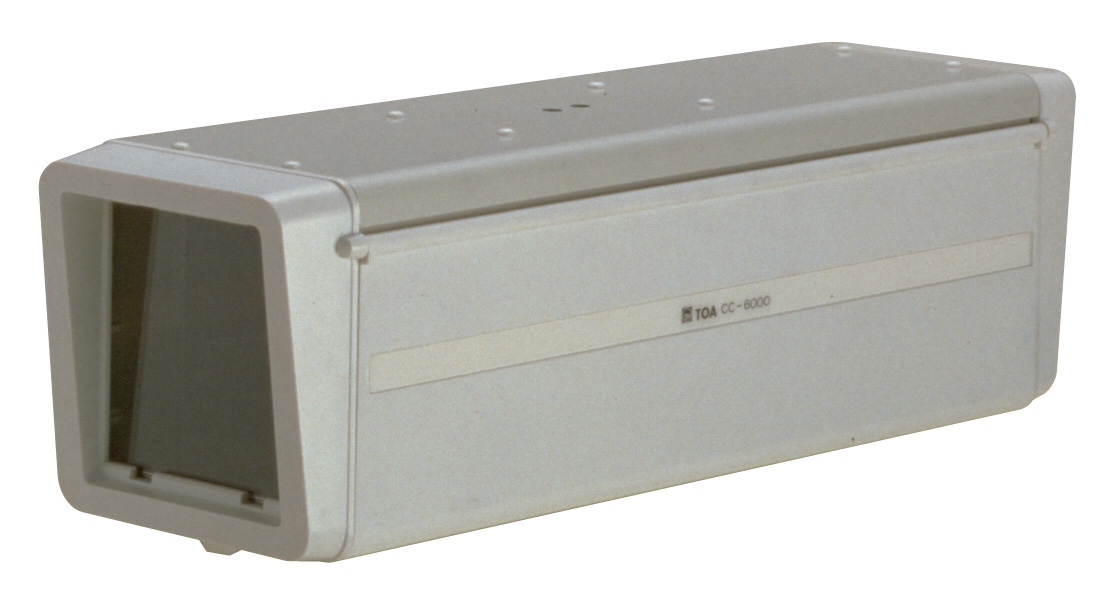

CC-6000A Indoor Camera Housing


The CC-6000A is an indoor use camera housing for 1/3 type series cameras.

Applications Indoors
Operating Temperature -10℃ to +50℃
Finish Front frame, Top cover: ABS resin, light cream
Base : Pre-coated steel plate, beige
Dimensions 128 (W) × 126 (H) × 405 (D) mm
Weight 1.7 kg
Applicable Cameras 1/3 type series cameras
Applicable Lenses 1/3 type series lenses and zoom lenses
