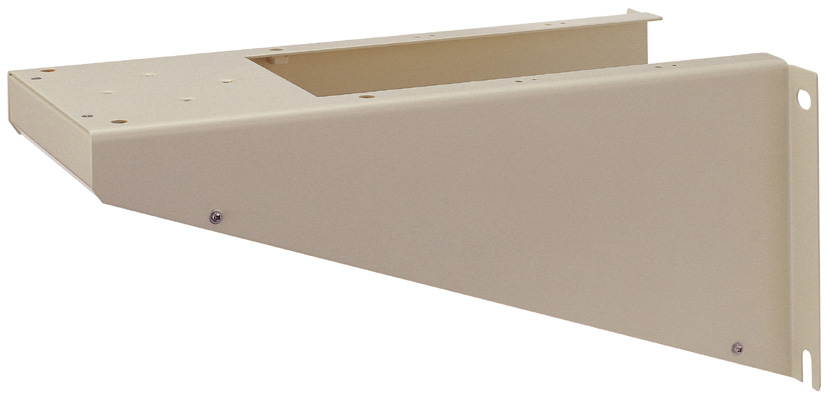

C-BC200K Wall Mount Bracket

C-BC200K

The C-BC200K Mounting Bracket is designed specifically for use in the wall-mounting of camera systems comprising the camera housing in combination with either the Pan/Tilt Head or the Housing Fixing Stand. The C-BC200K is constructed of stainless steel and is designed to withstand prolonged use in severe outdoor environments without corrosion or marring of the unit's appearance.

Specification
Permissible Load Under 20 kg
Wind Load Maximum wind velocity 60 m/s
(When C-CH200 or C-CH100 Series and C-PH200 are used)
Application Outdoor (except seaside and industrial districts where the unit is subject
to corrosion, and heights that expose the unit to strong wind pressure)
Finish Stainless steel, off-white, paint
Weight 2.8 kg
Accessory Pan/tilt head mounting bolt (SUS) …2,
Pan/tilt head mounting washer (SUS) …1set
Option Pan/tilt head: C-PH200, CC-5521
Housing fixing stand: C-BC200H
