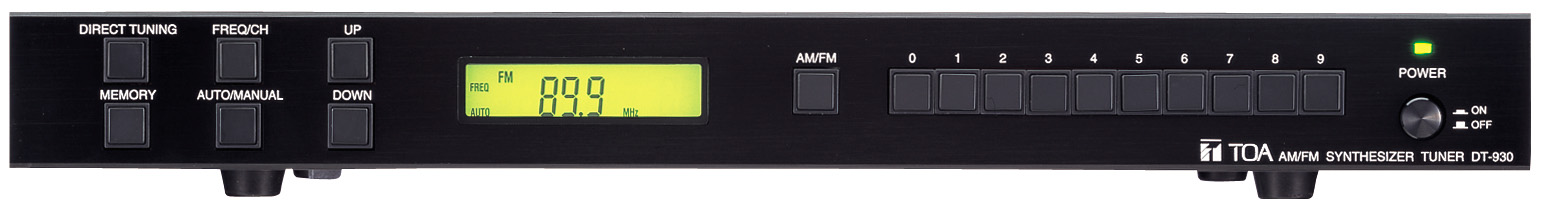

DT-930 AM/FM Synthesizer Tuner

DT-930 UL

The DT-930 radio tuner is designed for exclusive use with TOA's 900 series amplifiers.It is capable of receiving FM stereo broadcast and storing a total of 40 FM and AM stations.With the use of an optional rack mounting bracket, it can be mounted in an EIA Standardequipment rack (1 unit size).

*0 dB = 1 V
Power Source 120 V AC, 60 Hz (supplied from the AC adapter (accessory))
Power Consumption 180 mA (when AC adapter (accessory) is used)
Receiving Frequency FM: 87.9 - 107.9 MHz (200 kHz step)
AM: 520 - 1710 kHz (10 kHz step)
Antenna Input FM: 300 Ω (balanced), 75 Ω (unbalanced)
AM: Loop antenna (balanced), external antenna (unbalanced)
Audio Output Stereo: -15 dB*, 10 kΩ, unbalanced, RCA jack
Monaural: -15 dB*, 10 kΩ, unbalanced, M3 screw terminal, distance between barriers: 6.4 mm, RCA jack
Channels of Memory 40 channels in total for AM and FM broadcasts
Operating Temperature 0 ℃ to +40 ℃
Finish Panel: Aluminum (hair-line finish), black
Case: Pre-coated steel plate, black
Dimensions 420 (W) x 53 (H) x 295 (D) mm
Weight 2.8 kg
Accessory AC adapter …1, RCA stereo cord (1 m) …1, AM loop antenna (For indoor use only, 135 × 125 mm, leadwire: 1.2 m) …1, FM dipole antenna (For indoor use only, element length: 1.5 m, feeder: 1.8 m) …1
Option Rack mounting bracket: MB-15B
