DQ-C01 Digital I/O Module
DQ-C01

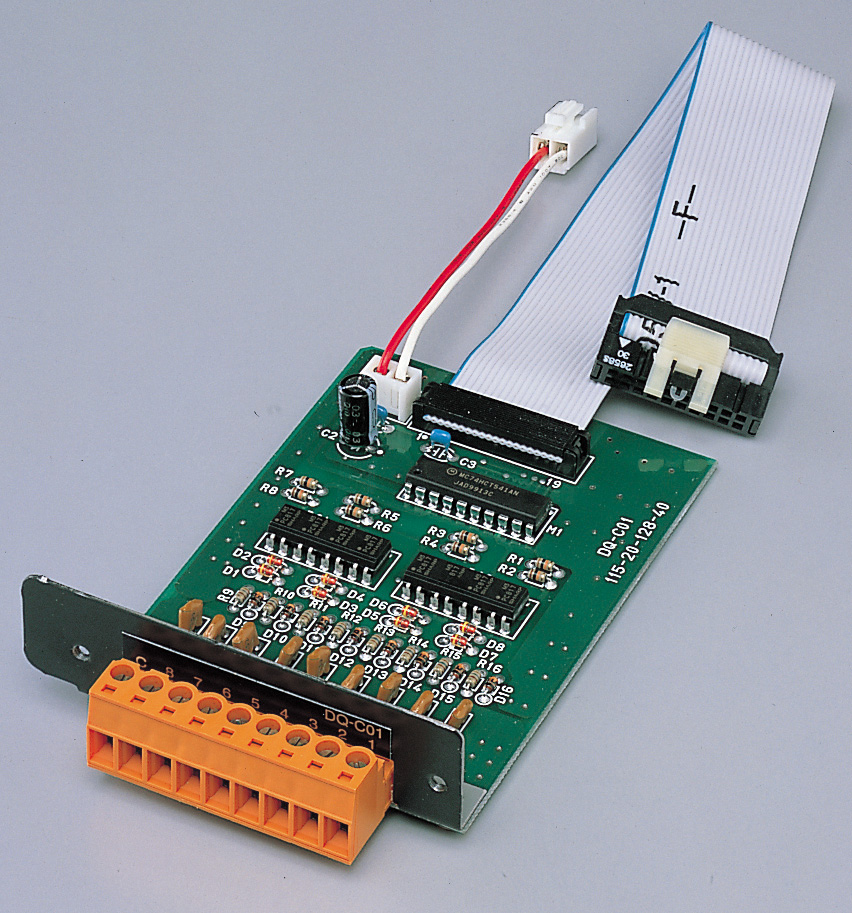

The DQ-C01 Remote Control Module is designed to permit remote control of memory selection, output volume adjustment, and output muting of TOA's Digital Processor DP-0206 from external equipment.
| Control Input | COM and terminals 1 - 8: Open voltage: 5 V DC, short circuit current: 25 mA, removable terminal block (9 pins) |
|---|---|
| Control | Memory selection: Direct: Max. 8 memories, Binary: 16 memories (Any one of 16 memories can be assigned to each terminal when set for Direct" mode.)" Control method: No-voltage make of over 500 ms/ No-voltage make pulse of over 500 ms (No-voltage make of over 500 ms only when set for Binary" mode.)" Volume control (Up/Down): Direct: Max. 4 groups, Binary: Max. 10 groups (Any output channel or channel group can be assigned to each terminal.) Control method: 1-step variation with no- voltage make pulse of over 500 ms. Continuous variation in 500 ms units with pulse of over 700 ms. Continuous up/down variation in 500 msec units with the addition of no-voltage make pulse of over 700 msec. Continuous volume variation stops when a break pulse is fed. Variable range: 0 to -∞ dB Muting (On/Off): Max. 8 groups (Any output channel or channel group can be assigned to each terminal.) Control method: No-voltage make of over 500 ms/ No-voltage make pulse of over 500 ms The above controls can be performed singly or in combination with other controls. |
| Setting | PC software (Windows95/98/NT compatible)* |
| Finish | Pre-coated steel plate, black, 30% glossy |
| Dimensions | 26.5 (W) × 76.5 (H) × 101 (D) mm |
| Weight | 60 g |
| Accessory | Mounting screw …2, Removable terminal plug (9 pins) …1 |
- * Windows95/98/NT is a registered trademark of Microsoft Corporation in the U.S.A.
