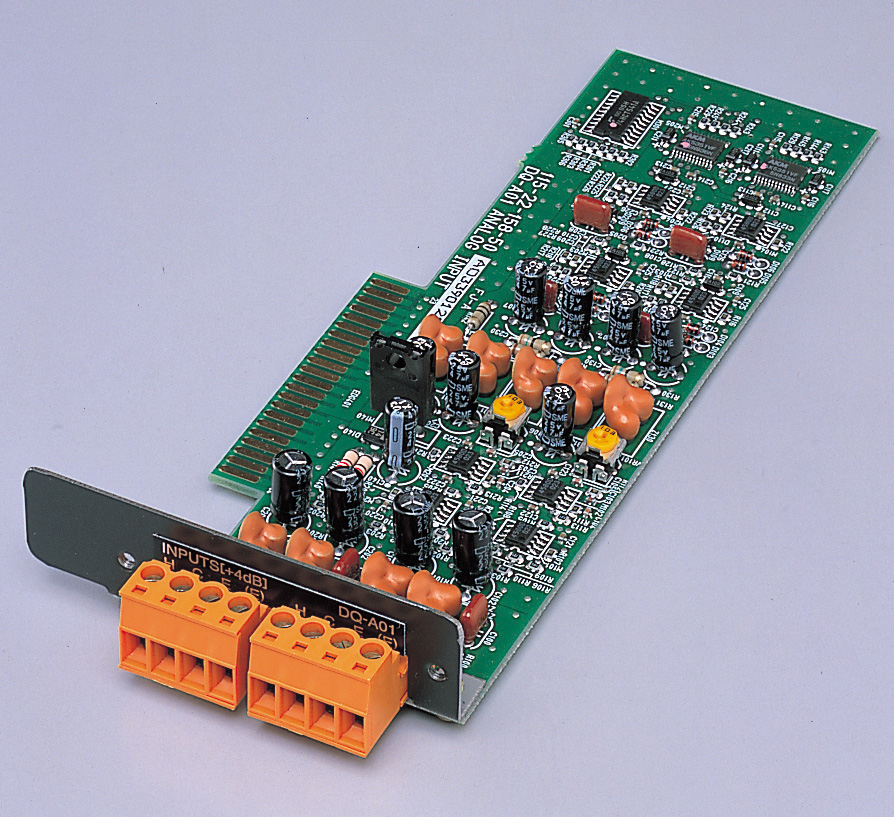

DQ-A01 Analog Input Module

DQ-A01

The DQ-A01 is an Analog Input Module to be used to expand the input of TOA's Digital Processor DP-0206 by 2 channels.

Specification
* 0 dB = 0.775 V
Input 2 channels, +4 dB* (Max. +24 dB*), 10 kΩ, electronically-balanced,
removable terminal block (4 pins)
A/D Converter 24 bits
Sampling Frequency 48 kHz
Frequency Response 20 - 20,000 Hz (±1 dB)
Dynamic Range 110 dB (IHF-A weighted)
Total Harmonic Distortion Less than 0.05% at 1 kHz, +4 dB* (20 - 20,000 Hz, BPF)
Finish Pre-coated steel plate, black, 30% glossy
Dimensions 26.5 (W) × 76.5 (H) × 168 (D) mm
Weight 80 g
Accessory Mounting screw …2, Seal …2, Removable terminal plug (4 pins) …2
