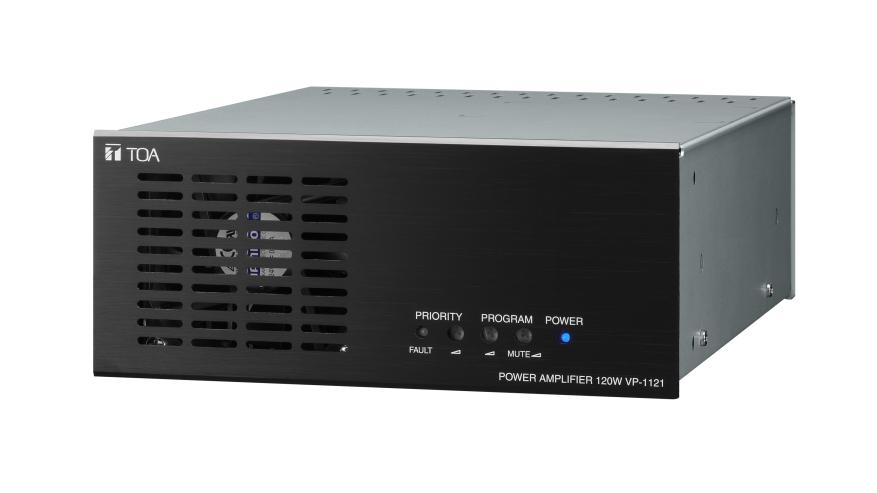

VP-1121 Power Amplifier 120W (CE version)

VP-1121 CE

The VP-1121 power amplifier can be used for rack-mount application.

* 0 dB = 1 V
Power Source AC: 220 - 230 V AC, 50/60 Hz
DC: 24 V DC
Power Consumption AC: 320 W (at rated output), 160 W (EN60065), 19 W (no-signal)
DC: 8.2 A (at rated output), 0.1 A (no-signal)
Rated Output 120 W
Input 2 program inputs (parallel), 0 dB*, 20 kΩ, balanced
2 priority inputs (parallel), 0 dB*, 20 kΩ, balanced
Impedance 83 Ω (100 V)
S/N Ratio 80 dB or more
Total Harmonic Distortion 1 % or less (at rated output f = 1 kHz)
Frequency Response 80 Hz - 16 kHz, ±3 dB (at 1/3 rated output)
Ventilation Fan cooling
Operating Temperature 0 ℃ to +40 ℃ (32 ゜F to 104 ゜F)
Operating Humidity 90 %RH or less (no condensation)
Finish Panel: Aluminum, black, alumite
Dimensions 210 (W) × 88.4 (H) × 338.7 (D) mm (8.27" × 3.48" × 13.33")
Weight 9.3 kg (20.5 lb)
Accessory Power cable (2 m (6.56 ft)) …1, Removable terminal plug (2 pins) …2,
Removable terminal plug (3 pins) …2, Removable terminal plug (5 pins) …2,
Joint plate …1, Joint plate mounting screw …3, Fuse (2.5 A) …1
Option Fault detector: YA-1000A
Half width blank panel: MB-25B-BK (for rack mounting one VP-1121 unit)
Rack joint bracket: MB-25B-J (for rack mounting two VP-1121 units)
