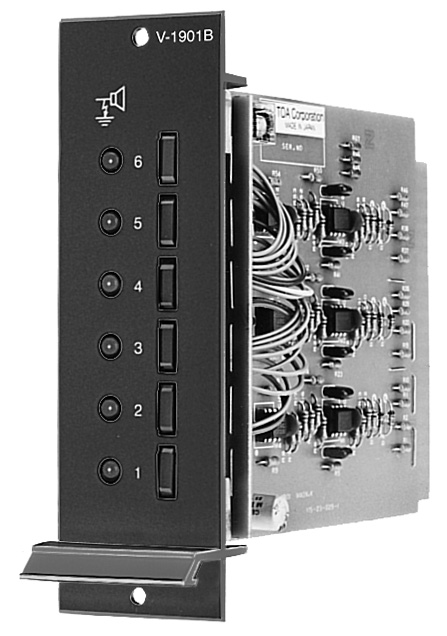

V-1901B Ground Leakage Monitoring Module

V-1901B

The V-1901B is a module monitors connected speaker lines and it's irregularities can also be checked with individual test seitches. It designed for use with the mixer flame.

Specification
Power Requirements 24 V DC
Power Consumption 60 mA max.
Input 6 inputs (loudspeaker line)
Output 1 output with floating contact (1 A 30 V DC)
Switches 6 test buttons
Indicators 6 ground leakage LEDs (RED)
Earth-Resistor Less than 50 kΩ
Connection 44-pin card-edge connector
Color Black
Dimensions(W×H×D) 40 (1.57")×129 (5.08")×193.5 (7.62") mm
Weight 150 g (0.33 lb.)
