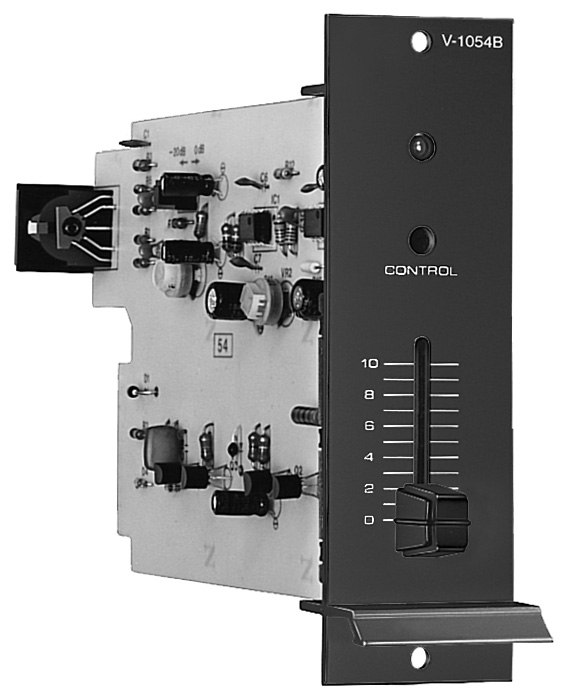

V-1054B Auxiliary Input Module

V-1054B

The V-1054B is an auxiliary preamplifer module with muting function which designed for use with the VM series mixer power amplifiers and the mixerflame.

Specification
Power Requirement 24 V DC
Current Consumption 22 mA
Input Sensitivity -20/0 dBV (switchable)
Input Impedance 100 kΩ (balanced)
Output Level -20 dBV
Output Impedance 10 kΩ
Frequency Response 30 Hz〜20,000 Hz %%p 1 dB
Distortion Less than 0.3 % (f=1 kHz sine wave)
Noise Level -94 dBV (at 20 Hz〜20,000 kHz)
Indicator In-use lamp (green LED)
Controls 1 slide-type volume control
1 multing level control
Programming function
1 muting
Connections Input : 5-pin DIN socket
Output and power received : 10-pin card edge connector
Color Black
Dimensions(W×H×D) 40 (1.57")×129 (1.57")×212 (8.35") mm
Weight 132 g (0.29 lb.)
