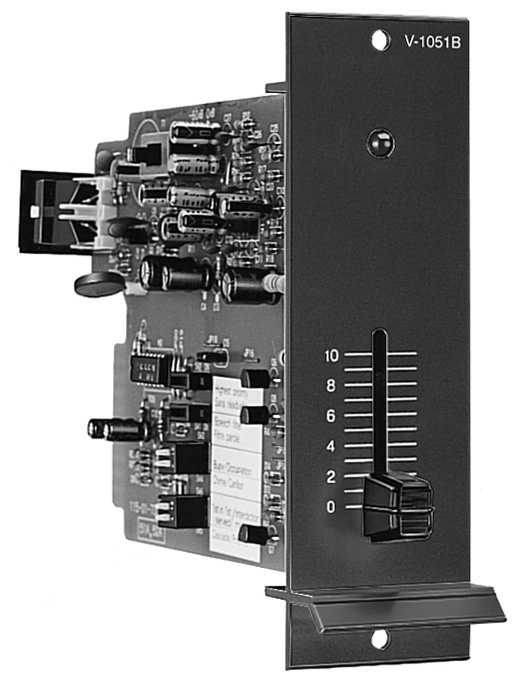

V-1051B Mic Input Module with Programming Function

V-1051B

The V-1051B is a microphone preamplifier module with compressor and programming function which designed for use with the VM series mixer power amplifiers and the mixerflame.

Specification
* 0 dB = 1 V
Power Source 24 V DC
Current Consumption 40 mA
Input Sensitivity and Impedance -60 dB*, 600 Ω, balanced with compressor
Output Level and Impedance -20 dB*, 10 kΩ
Frequency Response 30 Hz - 20 kHz, %%p 1dB
Speech Filter -12 dB at 100 Hz
Distortion 0.3 % or less (f=1 kHz sine wave)
Noise Level -124 dB* (20 Hz - 20 kHz, 200 Ω terminated)
Indicator In-use indicator (green LED)
Control 1 × slide volume control
Programming Function Highest priority, 1st-in-1st served priority
Cascade priority, Speech filter
Busy indication, Chime indication
Mic enable function
Connections Input: 5-pin DIN socket
Output and power received: 10-pin card connector
Color black
Dimensions 40 (W) × 129 (H) × 212 (D) mm (1.57" × 5.08" × 8.35")
Weight 151 g (0.33 lb)
