V-1016B Alarm Signal Module

V-1016B

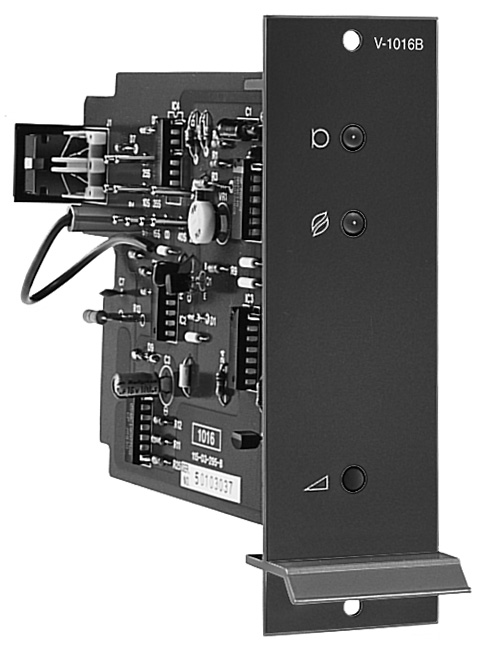

The Alert Signal Module V-1016B is designed for use with the Mixier Frame V-1000B. Two LED's (red and green) display the status of the module on the front panel. These informations can be sent to a remote microphone to control WAIT and SPEAK indicators. On the PCB, it is possible to adjust : the two frequencies, the length of the alert and the speed of frequencies switching. A volume control is accessible with a screwdriver on the front panel to avoid accidental modification of level adjustment.

Specification
Signal Two-tone alert
Frequency Response 440 Hz and 554 Hz insequence
Sounding Time Cycle length : 5〜45 s
Output Level 280 mV(p-p)
Output Impedance 10 kΩ
Current Consumption 27 mA
Indicators Alert : RED LED
Speak+Outputs : Green LED
Controls 1 volume, 1 speed
2 frequencies-Duration Selector
Connections 5-pin DIN Socket : Indications, +Remote control
10-pin Card connector : Power supply, -Output control
Color Black
Dimensions(W×H×D) 40 (1.57")×129 (5.08")×212 (8.35") mm
Weight 130 g (0.29 lb.)
