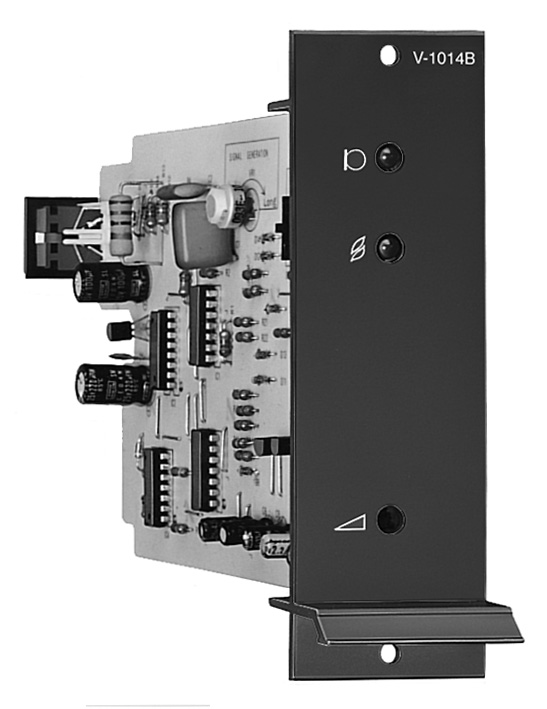

V-1014B Alarm Signal Module

V-1014B

The V-1014B is an alert signal module can generate siren, yelp or buzzer signal inconjunction with the mixer flame V-1000B or the VM series mixer power amplifier.

Specification
Power Requirement 24 V DC
Current consumption 35 mA
Signal Siren, Yelp or buzzer (switchable)
Frequency Response Siren : 400 Hz〜750 Hz
Yelp : 500 Hz〜750 Hz
Buzzer : 400 Hz
Sounding Time Approx. 5×60 s (variable)
Output Level 100 mV
Output Impedance 10 kΩ
Indicators Siren/Yelp/Busser : Red LED
Speech : Green LED
Controls 1 output level control
1 sounding time control
Connections Indication Output : 5-pin DIN Socket
Signal Output & power received : 10-pin card edge connector
Color Black
Dimensions(W×H×D) 40 (1.57")×129 (5.08")×212 (8.35") mm
Weight 140 g (0.31 lb.)
※ This module works on the highest priority always when operated.
