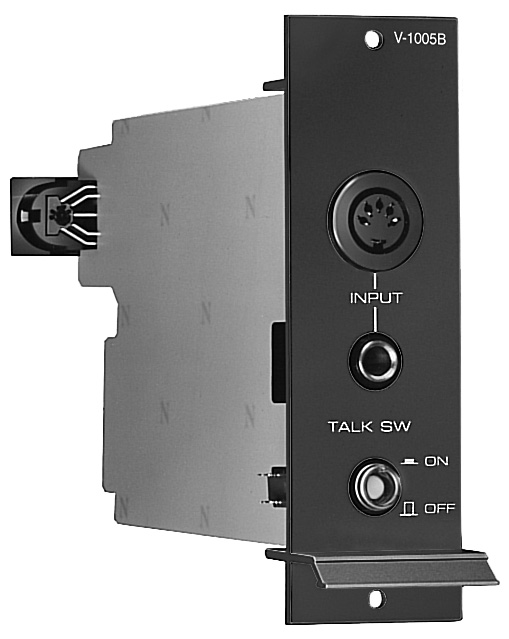

V-1005B Mic Input Module

V-1005B

The V-1005B is a module gives front access to the DIN or phone plug. It designed for use with the VM series mixer power amplifiers and the mixerflame.

Specification
Input One 5-PIN DIN jack & One phone jack (parallel)
Output 10-PIN card edge connector
Control Talk switch button
Color Black
Dimensions(W×H×D) 40 (1.57")×129 (5.08")×212 (8.35") mm
Weight 120 g (4.72 lb.)
