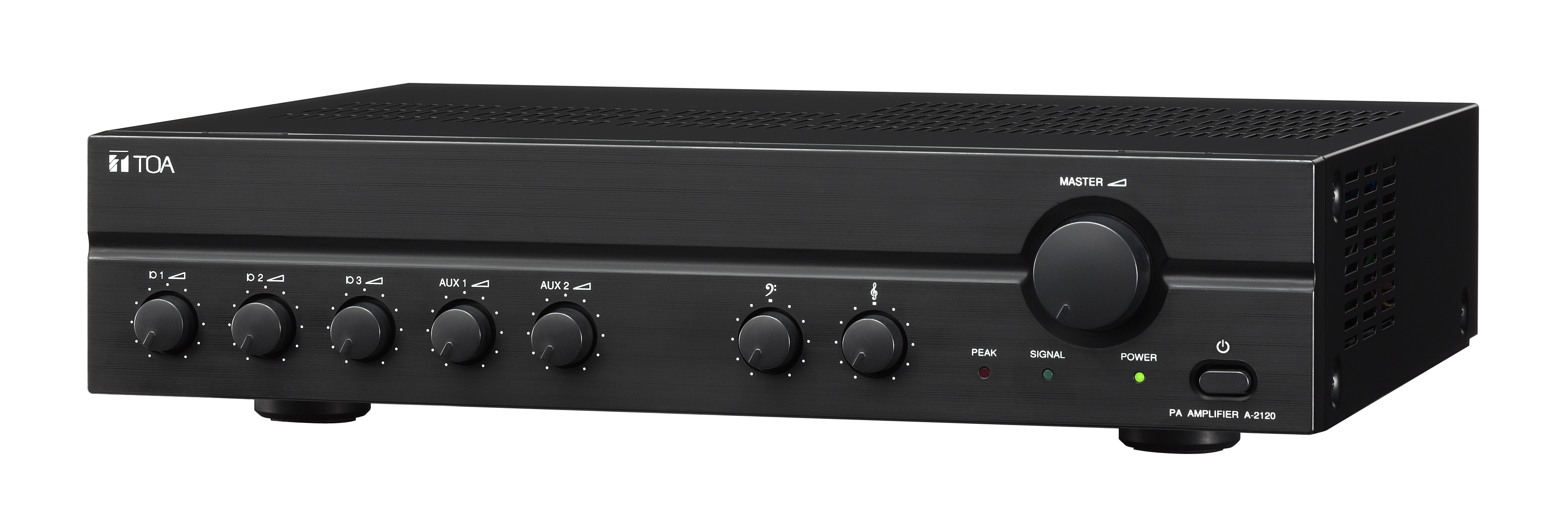

A-2120 Mixer Power Amplifier (L version)

A-2120 L

The A-2120 is a high cost-performance mixer power amplifier suited for broadcasting paging or background music in schools, offices, shops, factories, mosques, churches and large rooms.

Specification
* 0 dB = 1 V
Power Source 110 - 120 V AC, or 24 - 30 V DC
Rated Output 120 W
Power Consumption 124 W (EN60065), 260 W (AC operation at rated output),
8 A (DC operation at rated output)
Frequency Response 50 - 20,000 Hz (±3 dB)
Distortion Under 1% at 1 kHz, 1/3 rated power
Input MIC 1 - 3: -60 dB*, 600 Ω, balanced, phone jack
AUX 1,2: -20 dB*, 10 kΩ, unbalanced, RCA pin jack
Output Speaker out: Balanced (floating)
High impedance: 83 Ω (100 V), 42 Ω (70 V)
Low impedance: 4 Ω (22 V)
Rec out: 0 dB*, 600 Ω, unbalanced, RCA pin jack
Phantom Power DC +21 V (MIC 1)
S/N Ratio Over 60 dB
Tone Control Bass: ±10 dB at 100 Hz
Treble: ±10 dB at 10 kHz
Muting MIC 1: Mutes other input signals by 0 - 30 dB attenuation
Indicator Power, signal, peak
Finish Panel: ABS resin, black
Case: Steel plate, black
Dimensions 420 (W) × 100.9 (H) × 360.3 (D) mm (16.54" × 3.97" × 14.19")
Weight 10.8 kg (23.81 lb)
